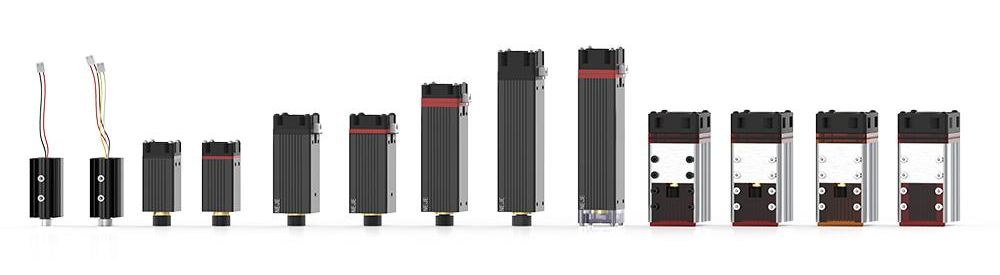

How to Choose The Right Module for Your Needs?

A40630.jpg__PID:a03cfa6b-357f-4770-9397-4eebe64ed18c

NEJE A40630 Laser Module

The NEJE A40630 module utilizes a top-tier Nichia light source and features fast-axis compression technology, providing an output optical power exceeding 6W. It offers a smaller focus size, higher light efficiency, and a longer service life compared to traditional 5W modules. The zoom optical design gives the module a very uniform and sharp beam, enabling it to achieve a small focus point and a well-proportioned XY beam shape, whether at near or far focus. The most distinctive feature of this module is its ability to meet the needs of users who require both fine wood engraving and cutting. Additionally, the module is capable of engraving materials such as glass, ceramic, stone, anodized aluminum, and stainless steel, as well as cutting non-woven fabric and cardboard.

E4023.jpg__PID:fa6b357f-9770-4397-8eeb-e64ed18c2cd3

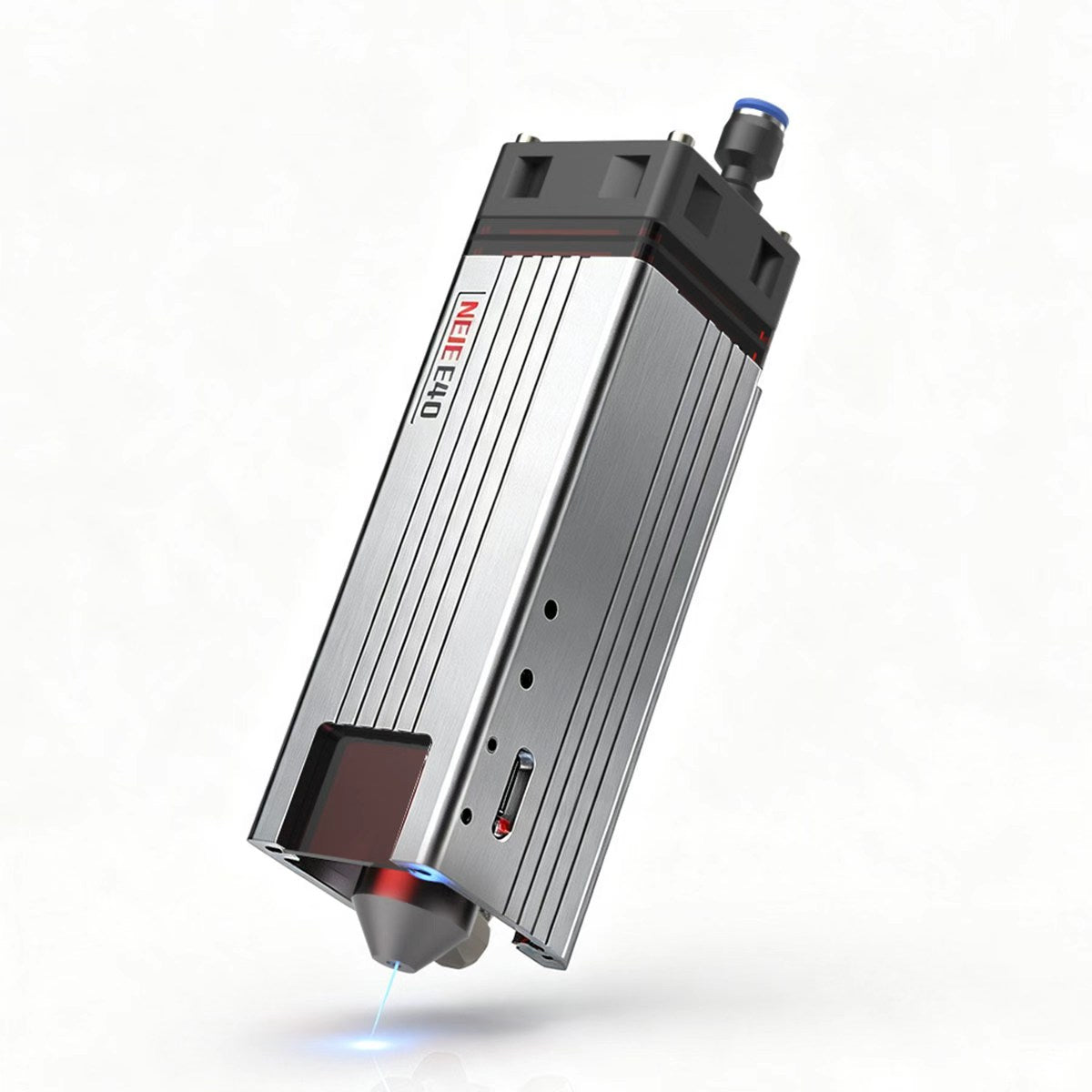

NEJE E40Ⅱ Laser Module

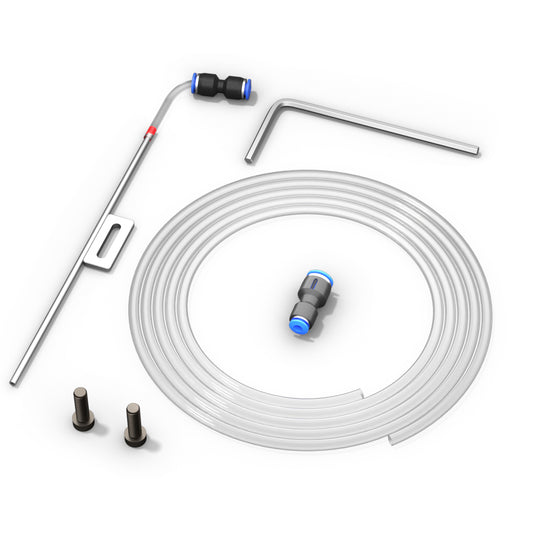

The NEJE E40Ⅱ module, based on the first-generation E40, is specifically designed as a fixed-focus module with an output optical power greater than 10W to meet the needs of both wood engraving and cutting. The E40Ⅱ utilizes sophisticated lens compression technology, and compared to the previous E40, the E40Ⅱ has an increased focal length to adapt to thicker wood cutting while retaining fine engraving capabilities. The E40 module comes with a built-in air protection feature, and without the need for additional air assistance, the module's own cooling system can adequately protect the lens. The E40Ⅱ is also equipped with both cavity-style and needle-style air assistance forms; the needle-style air assistance is not particular about the air source and can be virtually maintenance-free with common woodwork air sources. Of course, the capabilities of the E40Ⅱ extend far beyond woodworking; a multitude of other materials can be quickly engraved and cut.

E30.jpg__PID:d9b34d99-5595-4086-a913-7c5d42d9f513

NEJE E30 Laser Module

The NEJE E30 module is a short-focus specialized module designed specifically for engraving anodized aluminum, stainless steel, metal plating, and fine hardwood. It offers exceptional grayscale performance for wood engraving. This module features a top-tier original Nichia module and achieves an exaggerated energy density through multiple complex lens compression technologies. The module's XY structure provides engraving performance on metal materials such as aluminum oxide and stainless steel that even surpasses the 1064nm system, and it does so at a very fast speed. It is an excellent engraving module that achieves perfect metal engraving effects at a lower cost.

A406402.jpg__PID:4d995595-1086-4913-bc5d-42d9f5131648

NEJE A40640Ⅱ Laser Module

The NEJE A40640 II is a classic masterpiece from NEJE and can be regarded as the pioneer of semiconductor engraving modules. The A40640 II is highly stable and reliable, lightweight and efficient, with a large user base. It is an extremely versatile module for both engraving and cutting. It features a one-of-a-kind dual fast-axis compression technology, with a 12W optical power output. Thanks to its variable focus design, it offers excellent performance on hard materials like stainless steel, anodized aluminum, and stone, and it can effortlessly cut MDF and wood less than 20mm thick. Even after five years since its launch, the A40640 remains the choice of many professional users.

B30635.jpg__PID:4106de06-5170-4c9b-ae8f-acf7841df0b6

NEJE B30635(3500) Laser Module

The NEJE B30635 is a must-have laser engraving module for enthusiasts looking to achieve ultra-clear image engravings on wood. This module features a 405nm 600mw high-power output module, with a minimal focus spot size and the more efficiently absorbed 405nm wavelength as its standout features.

N30610.jpg__PID:de065170-4c9b-4e8f-acf7-841df0b60978

NEJE N30610 Laser Module

The NEJE N30610 is a special 450nm wavelength module. Although it only has a power of 2.5W, this module has an extremely small focus and high energy density, making it ideal for engraving very precise images on materials such as ceramic and hardwood. This module is a choice for many artists, capable of quickly presenting very high-resolution images.

E80.jpg__PID:8facf784-1df0-4609-b8fd-9c1a49bacefc

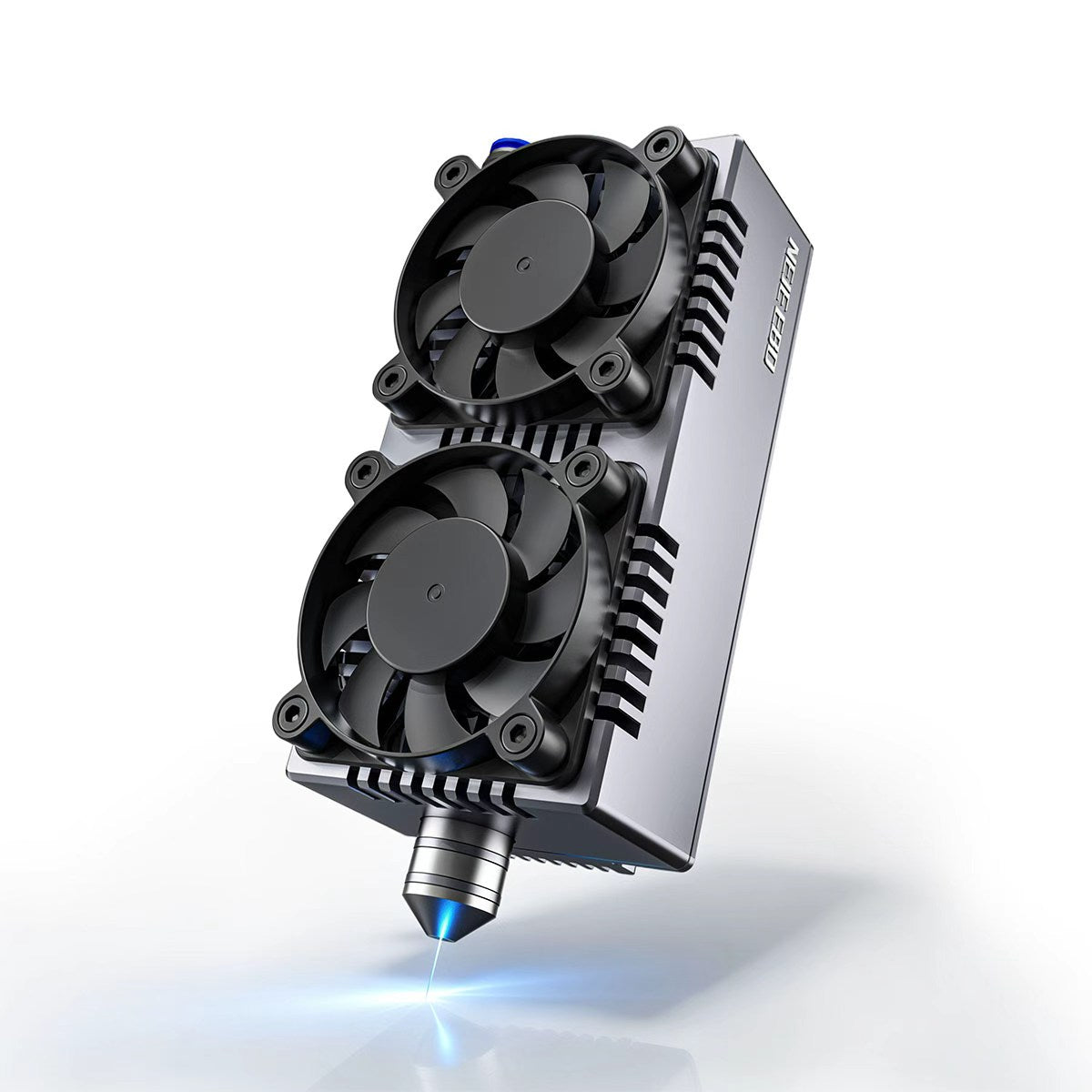

NEJE E80 Laser Module

The NEJE E80 module is NEJE's pioneering work for the true industrial field, having earned the reputation and praise of many professional users. Unlike many non-professional users who only consider power and price when purchasing a module, NEJE's product is based on the value it brings to users. NEJE has never solely based the decision to manufacture a module on cost or production speed. What the NEJE team truly aims to create is the ultimate performance and reliable, long-lasting, easy-to-maintain product characteristics, which are the unique charm of the NEJE E80. The NEJE E80 module has many features:

1. It uses the top-tier Nichia light source module, and under the same current, the output power of 24W is 20% higher than the industry, and it has a longer lifespan.

2. It features a complex lens system, which is difficult to design and manufacture, resulting in slow production, but its focus size (0.1x0.1mm actual focus) and depth of field quality are far superior to other Osram light source focusing (0.15x0.2mm XTOOL 20W) and other inferior modules. The outstanding performance of the NEJE E80 module can provide a significant operational experience.

3. Even without additional air assistance, it can directly cut 17mm wooden boards without causing a fire.

4. The cutting of XY is very symmetrical and does not become trapezoidal.

5. The amount of cutting is small, the cut is cleaner, and there are fewer carbonized substances.

6. The cutting strength is great, and it is easier to cut hard materials such as MDF and hardwood. In fact, the cutting performance of the E80 is far superior to the so-called 40W power currently on the market. Optical quality is a complex and difficult-to-understand topic, and many bloggers are not professional, using power as a measure of module performance, which brings more fire risks and a poor engraving and cutting experience. The NEJE E80 module is easy to maintain, with a built-in 99.99% high transmittance quartz protective replaceable glass piece, compatible with thick and thin material gas nozzles, and supports external needle gas nozzle maintenance-free design. Dual external fan easy maintenance replacement design.

ABOUT NEJE®

NEJE Team focuses on diode laser machines, laser modules, accessories, services, and solutions.
We provide artists, merchants, handicraft enthusiasts, and educational institutions with more creative, high-quality, and efficient art tools.

Since 2013,NEJE Tools have been sold to over 100 countries and areas,served over 1 million users in the world with five-star customer feedback. Being the most widely used diode laser tools,NEJE is the only company who has been fully developed and manufactured independently.

Whether you use wood, acrylic, metal, canvas, slate, glass, etc. Used for engraving, cutting, 2D patterns, 3D patterns, or cylindrical objects. NEJE Tools can provide different styles of laser engraving machines to meet all your needs.

NEJE team has its own optical laboratory and module manufacturing factory, as well as a team of electronic, mechanical, and software engineers. Our engineers and R&D Team focus on the most advanced technology in diode laser and NEJE Tools are high-performing and stable. We design and manufacture top-level optical modules and control equipment, and complete overall testing of product mechanical equipment. The NEJE team has built a complete service system to provide users with comprehensive product and service guarantees.

ADVANCED LASER TECHNOLOGY

NEJE already produced and manufactured a series of modules from B30635 to E80. NEJE researches and develops various optical characteristic modules to make the engraving and cutting process more precise and professional. Ten years of technological accumulation have enabled Neje to maintain a leading position in the practicality and safety of Diode Laser. NEJE adheres to long lifespan and high performance in diode laser design. Long Lifespan and stable performance are the most prominent values of NEJE laser modules. Each NEJE laser module has a guaranteed registration ID, which ensures two years of free After-Sales Service worldwide.

Wireless control

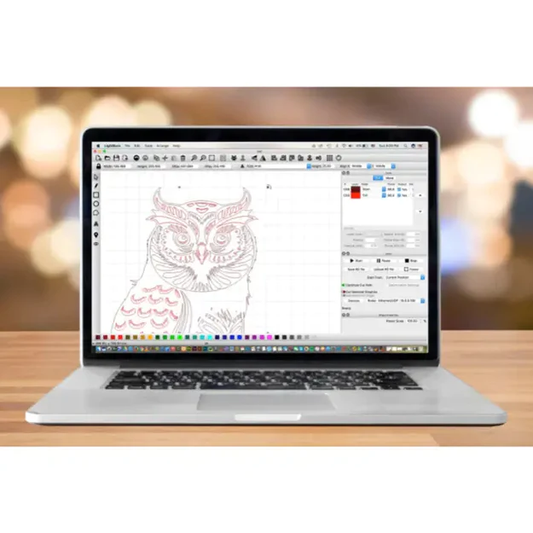

After 10 years of software development, the NEJE team has seamlessly integrated the characteristics of Diode Laser with mechanical and third-party software. The NEJE R&D team has developed a reliable BLE wireless control system, and with the help of NEJE APP, NEJE Win Software, and NEJE Software Bridge, it has achieved wireless real-time control of devices using laserGRBL and lightburn software. Greatly improving operational efficiency, portability, and user experience.

Fully automatic control

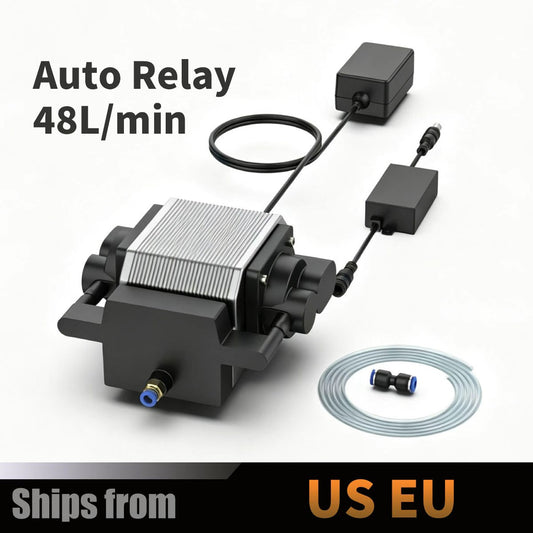

NEJE team delves into the problems encountered during the process of using diode laser for artwork creation and carefully listens to the artist's suggestions. Based on the characteristics of Diode laser, the NEJE R&D team has developed a complete set of automated control systems, including automatic air assist, multi-layer focus automatic setting, automatic smoke exhaust function, safety system settings, and other functions.

GROW PRODUCTIVITY

Under the demand of mass production, NEJE software has implemented wireless offline control function,which is easy to operate. This easily enables one computer to simultaneously control countless NEJE devices of different models, helping you save a lot of computer investment, time, and labor costs.

RELIABLE SERVICE

NEJE team has been continuously listening to user feedback and opinions over the past decade, optimizing the product experience and enhancing software functionality. NEJE will provide software and firmware upgrade services to global users.
