NEJE Max 4 20w laser engraver, wood laser cutter, laser wood engraver, cnc laser cutter machine for wood \ MDF \ plywood \ leather \ stone
- Ships from US: Ship to the United States(except Alaska, Guam, Hawaii, Puerto Rico, Armed Forces Americas, Armed Forces Europe, Armed Forces Pacific)
- Ships from Europe: Ship to European Union Member States and Cyprus, Switzerland, Norway, Albania, Iceland, Malta, Serbia, Ukraine.
- Ships from UK: Ship to UK.
- Ships from AU: Ship to AU.
-
Ships from China: Canada and other countries & areas please choose ship from China.
Why choose NEJE Max 4 ?
750*460mm working area + linear guide
Motorized Z axis opens up more possibilities
Professional and Efficient Software Sports Control System

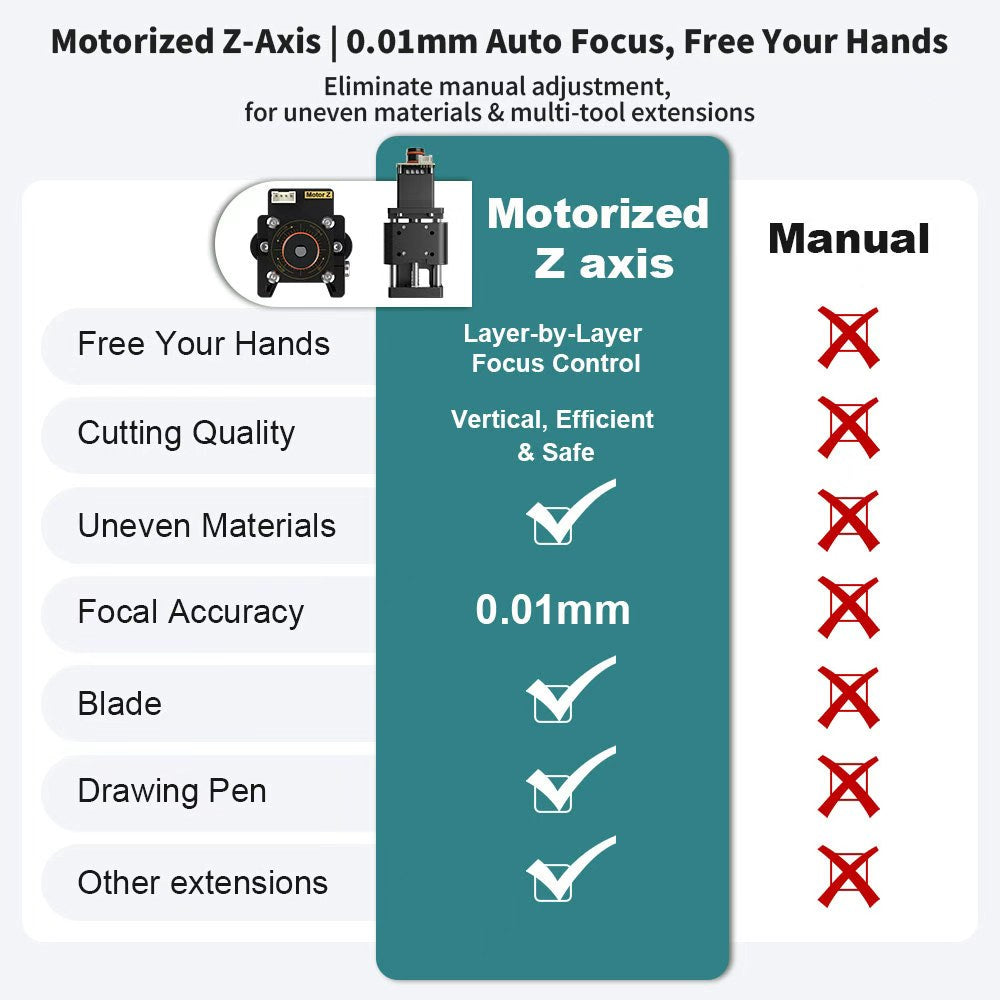

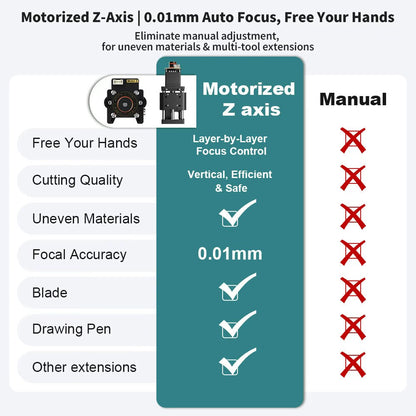

Motorized Z axis

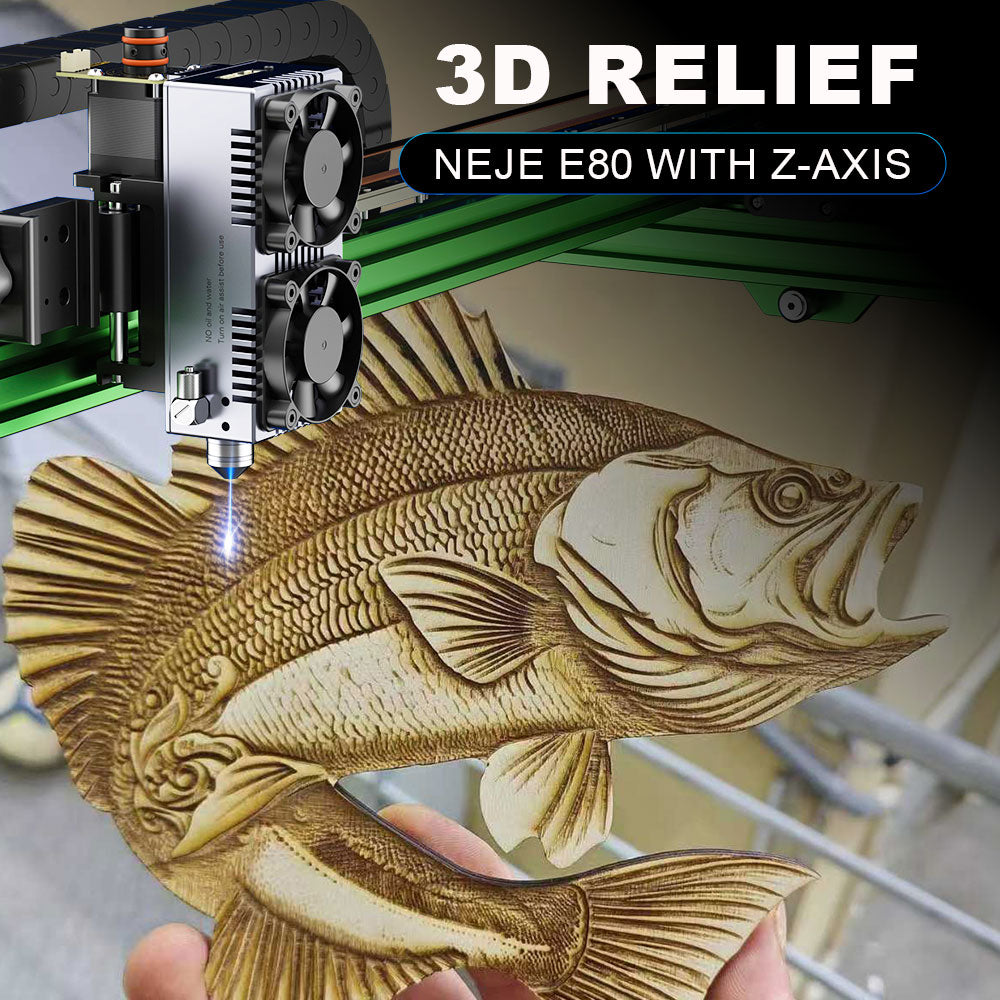

3D artworks
Engraving on uneven materials
Maximizing your return on investment
Free your hands
Drawing Pen / Blade
Seeking new possibilities in surface engraving and cutting technology
E80 Laser Module Performance

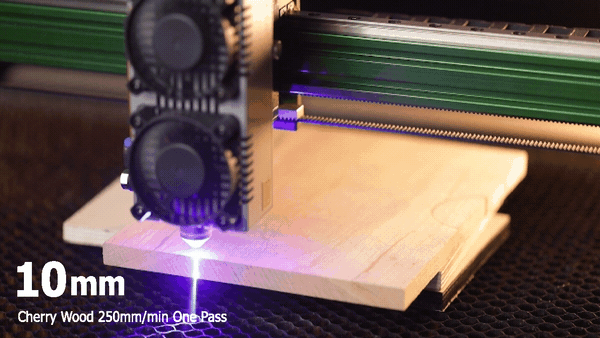

10mm Cherry Wood, 250mm/min, 1 pass

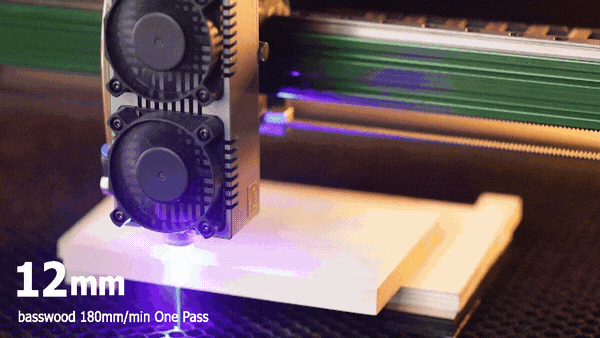

12mm Basswood, 180mm/min, 1 pass

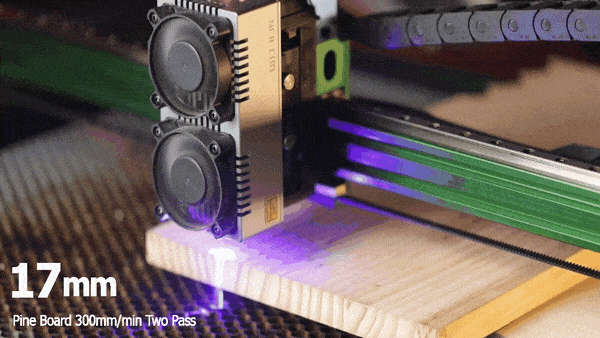

17mm Pine Board, 300mm/min,2 passes
20mm pinewood, 60mm/min, 1 pass

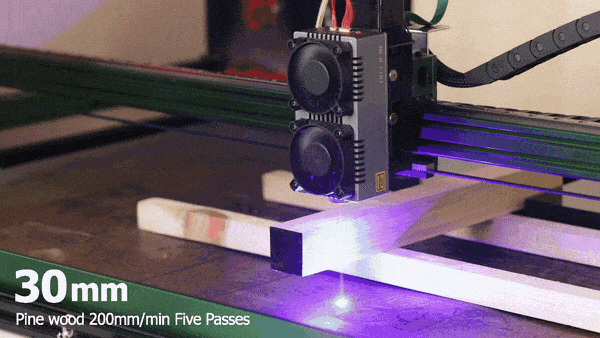

30mm Pine Wood, 200mm/min, 5 passes

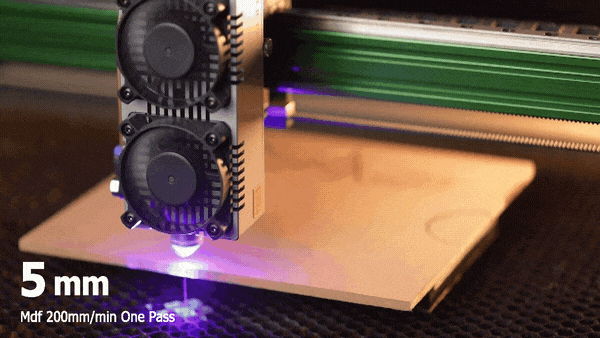

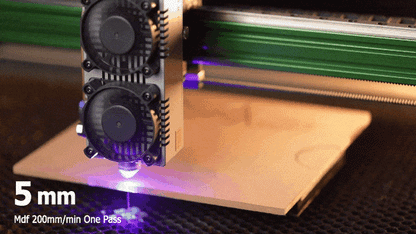

5mm MDF, 200mm/min, 1 pass

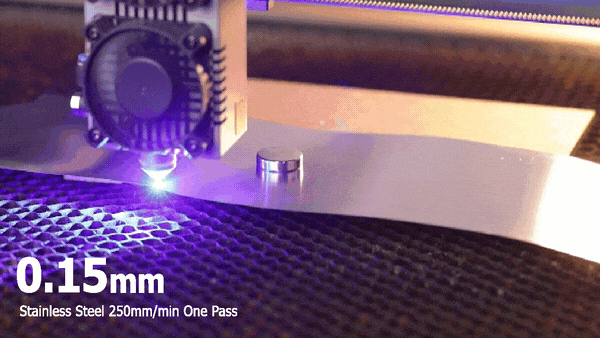

0.15mm Stainless Steel, 250mm/min, 1 pass

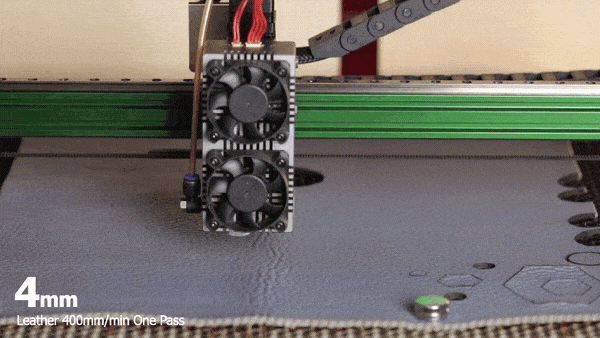

4mm leather, 400mm/min, 1 pass

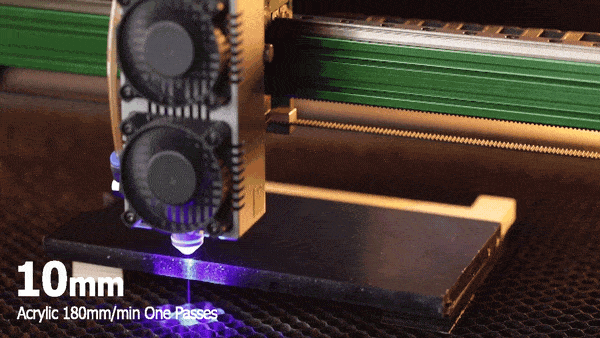

10mm Black Acrylic, 180mm/min, 1 pass

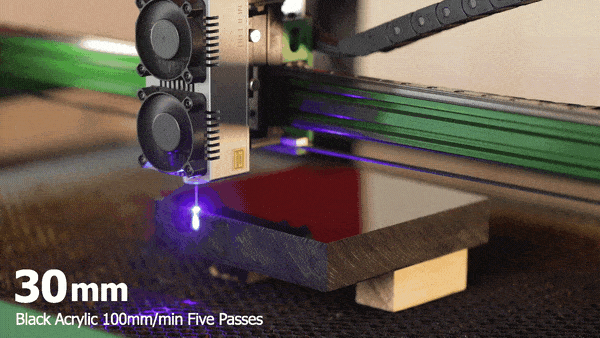

30mm Black Acrylic, 100mm/min, 5 passes

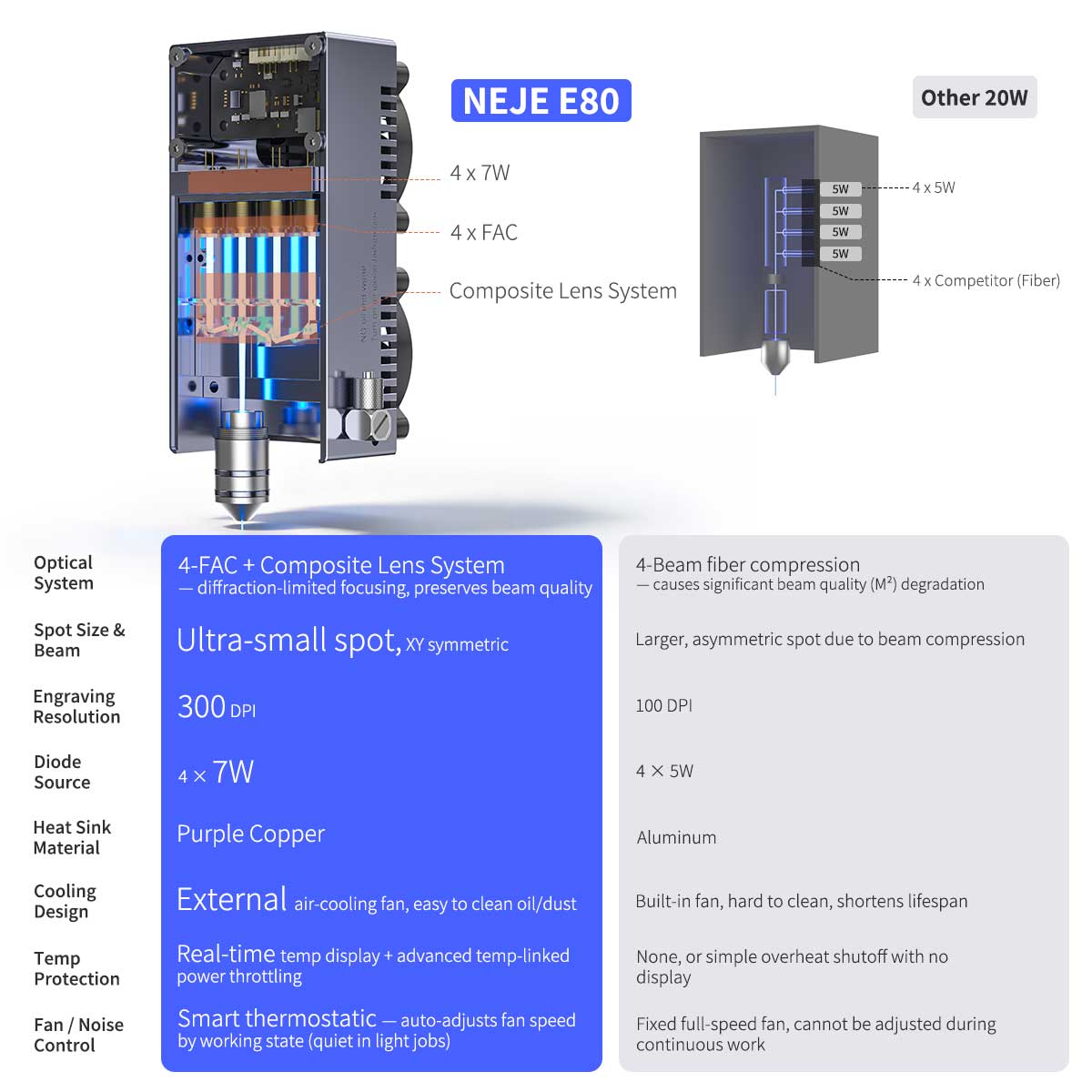

What are the unique features of the E80 module?
The NEJE E80 module is NEJE's pioneering work for the true industrial field, having earned the reputation and praise of many professional users. Unlike many non-professional users who only consider power and price when purchasing a module, NEJE's product is based on the value it brings to users. NEJE has never solely based the decision to manufacture a module on cost or production speed. What the NEJE team truly aims to create is the ultimate performance and reliable, long-lasting, easy-to-maintain product characteristics, which are the unique charm of the NEJE E80. The NEJE E80 module has many features:
1. It uses the top-tier Nichia light source module, and under the same current, the output power of 24W is 20% higher than the industry, and it has a longer lifespan.

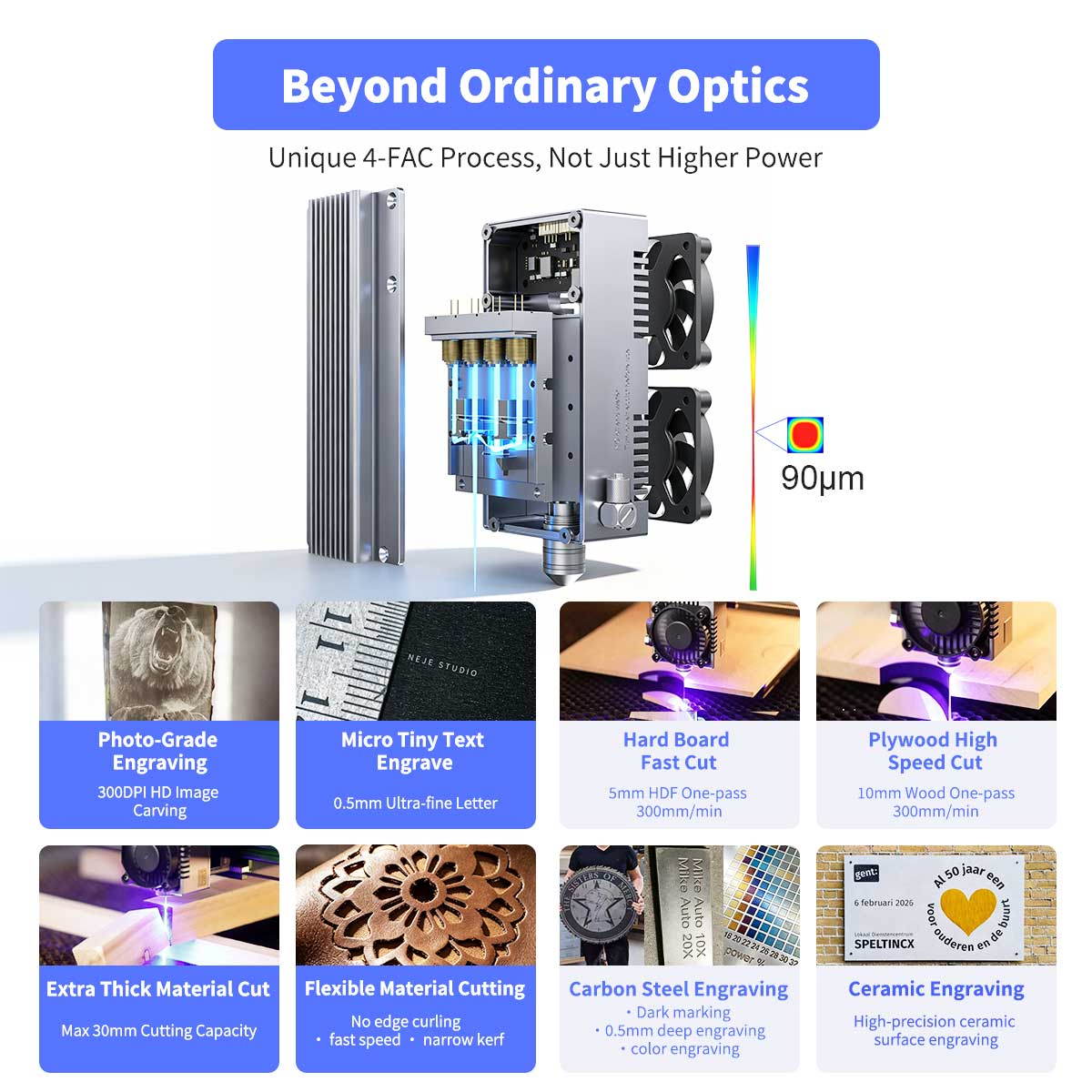

2. It features a complex lens system, which is difficult to design and manufacture, resulting in slow production, but its focus size (0.1x0.1mm actual focus) and depth of field quality are far superior to other Osram light source focusing (0.15x0.2mm XTOOL 20W) and other inferior modules. The outstanding performance of the NEJE E80 module can provide a significant operational experience.
3. Even without additional air assistance, it can directly cut 17mm wooden boards without causing a fire.
4. The cutting of XY is very symmetrical and does not become trapezoidal.
5. The amount of cutting is small, the cut is cleaner, and there are fewer carbonized substances.
6. The cutting strength is great, and it is easier to cut hard materials such as MDF and hardwood. In fact, the cutting performance of the E80 is far superior to the so-called 40W power currently on the market. Optical quality is a complex and difficult-to-understand topic, and many bloggers are not professional, using power as a measure of module performance, which brings more fire risks and a poor engraving and cutting experience. The NEJE E80 module is easy to maintain, with a built-in 99.99% high transmittance quartz protective replaceable glass piece, compatible with thick and thin material gas nozzles, and supports external needle gas nozzle maintenance-free design. Dual external fan easy maintenance replacement design.

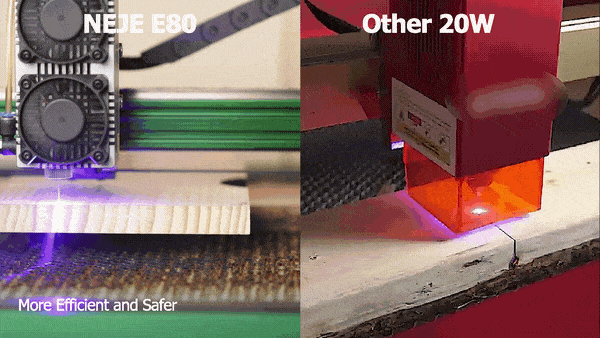

Less carbonized substances and smoke and risk of fire
The excellent optical design and multi-layer working mode of the NEJE E80 module enable the maximum reduction of carbonization substances and prevent fire when cutting wood.The ordinary refractive 20W/30W/40W laser module generates more carbonization substances,smoke,and risk of fire when cutting wood.video

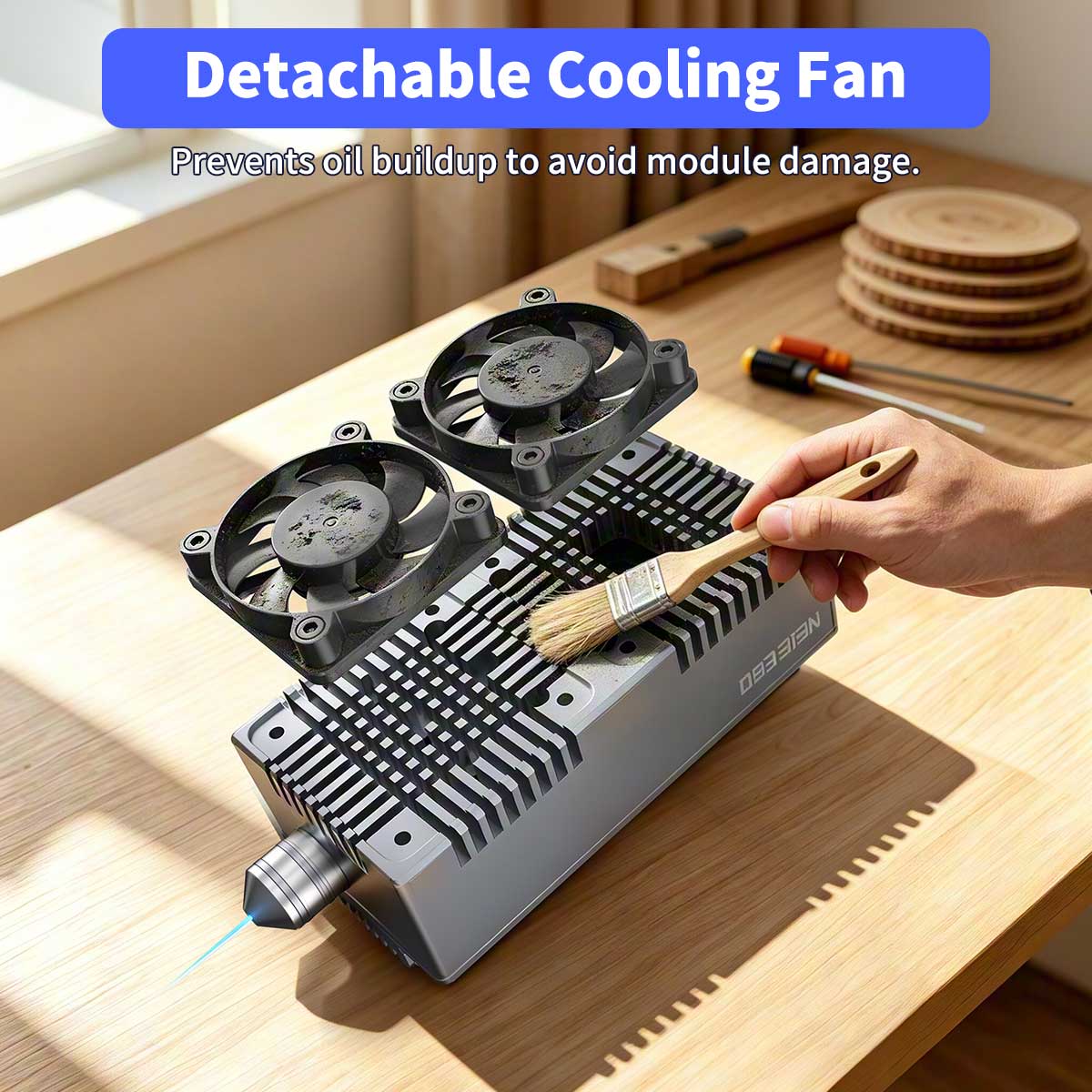

Red copper efficient heat dissipation system

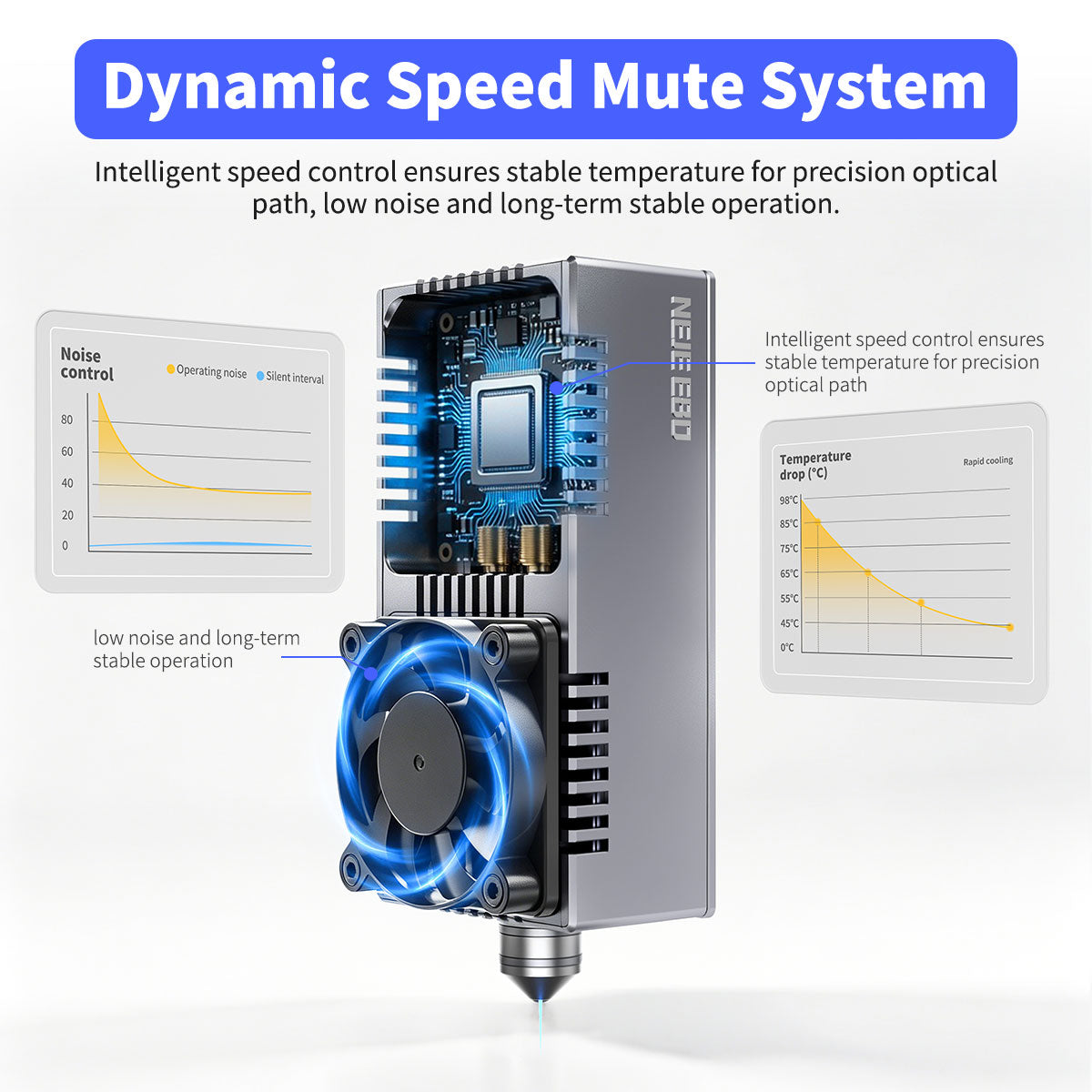

A red copper efficient heat dissipation system is designed to effectively dissipate heat generated by electronic components, ensuring their optimal performance and longevity. The use of red copper in the heat dissipation system helps maintain stable and continuous power output.
Long Lifespan
The design difference between NEJE 80 industrial modules and other high-power modules is a module’s performance.
NEJE E80 takes the pursuit of long lifespan and high performance as the design concept,and chooses the most difficult manufacturing scheme.We believe that the lifespan and performance of the module is the real value for the user to buy the E80 module,which makes the E80 have no advantage in power.The reason for E80's stronger performance than other 6xLD and 8xLD is that we did not choose 8xLD or 6xLD to release new products relatively quickly for marketing gimmicks.Or destroying the original LD structure and reflective structure scheme to quickly manufacture new products.This may quickly obtain users.But this is against the values of the NEJE team.
The safety consideration of the high-power model is also a special emphasis of the NEJE team. The high-power model is particularly easy to burn during operation.It eliminates the need to optimize the focus and angle during the design process.NEJE Max 4 motorized Z-axis can be better to safely control high-power modules.
Warranty Statement: 2 Years(If the laser module works 8 hours per day,the lifespan will be 7 years)
Under appropriate working conditions,the service life can reach 5 years,meanwhile,the left power is about 70%. Please pay attention to moisture-proof and dust-proof treatment. Make sure the air goes into the module without water and oil.The len needs to be cleaned regularly. The lens does not belong to the free warranty. The NEJE's free after-sale policy must meet the conditions of non-human disassembly and misoperation and use under the correct conditions. For more details please check in neje.wiki web.
Register Your SN Code to Ensure 2-Year-Warranty:https://myneje.neje99.com/
Accessories of E80
High-quality accessories designed to be compatible with various types of air sources and materials of varying thicknesses. These accessories boast a spare lens with 99.99% transmittance and exceptional resistance to temperatures up to 1000 ℃. The replaceable lens design enhances the durability of the module.
Laser Light Shield
The E80 original laser module has a unique shading design, as it adopts a new and efficient heat dissipation structure design. The traditional red acrylic laser module may make the overall structure look unattractive and bulky. The new sliding up and down shading ring of E80 greatly enhances its appearance, making the overall appearance more technological. In the cutting process of conventional thickness materials, the shading design can block the overflowing light and improve the operating experience in an open environment.
E80 MATERIAL & DATABASE
| Material | Marking | Carving | Cutting |
|---|---|---|---|
| Pine board 12mm | √ | √ | √ |
| Pine board 17mm | √ | √ | √ |
| Solid wood (Spruce Plank) 30mm | √ | √ | √ |
| Birch plywood 5mm | √ | √ | √ |
| Birch plywood 10mm | √ | √ | √ |
| Birch plywood 18mm | √ | √ | √ |
| MDF board 5mm | √ | √ | √ |
| MDF board 8mm | √ | √ | √ |
| MDF board 18mm | √ | √ | √ |
| Acrylle black 5mm | √ | √ | √ |
| Acrylle black 10mm | √ | √ | √ |
| Acrylle black 18mm | √ | √ | √ |
| Acrylle black 30mm | √ | √ | √ |
| Brushed Acrylle transparent | √ | ||
| Leather<2mm | √ | √ | √ |
| Leather<4mm | √ | √ | √ |
| PU/PVC Leather<2mm | √ | √ | √ |
| PU/PVC Leather<4mm | √ | √ | √ |
| Corrugated cardboard <8mm | √ | √ | √ |
| Corrugated cardboard <18mm | √ | √ | √ |
| Hard Cardboard 1.5mm | √ | √ | √ |
| Hard Cardboard 2mm | √ | √ | √ |
| Hard Cardboard 3mm | √ | √ | √ |
| Scratch paper | √ | √ | √ |
| Weeding invitation paper 0.5mm | √ | √ | √ |
| Colord A4 Paper - not white | √ | √ | √ |
| A4 Paper white | √ | ||
| Kraft paper 0.5mm | √ | √ | |
| Vinyl | √ | ||
| Non-woven | √ | ||
| Cotton | √ | √ | |
| Linen | √ | √ | |
| Velvet | √ | √ | |
| Canvas | √ | √ | |
| Fabric polyester | √ | √ | |
| Fabric synthetics | √ | √ | |
| ABS sheet <2mm - Dark Color | √ | √ | √ |
| PVC sheet 2mm - Dark Color | √ | √ | √ |
| Plastic white paint | √ | ||
| PPR | √ | ||
| Bakelite | √ | ||
| Brushed glass | √ | ||
| Brushed ceramic | √ | ||
| Cobblestone | √ | ||
| Slate | √ | ||

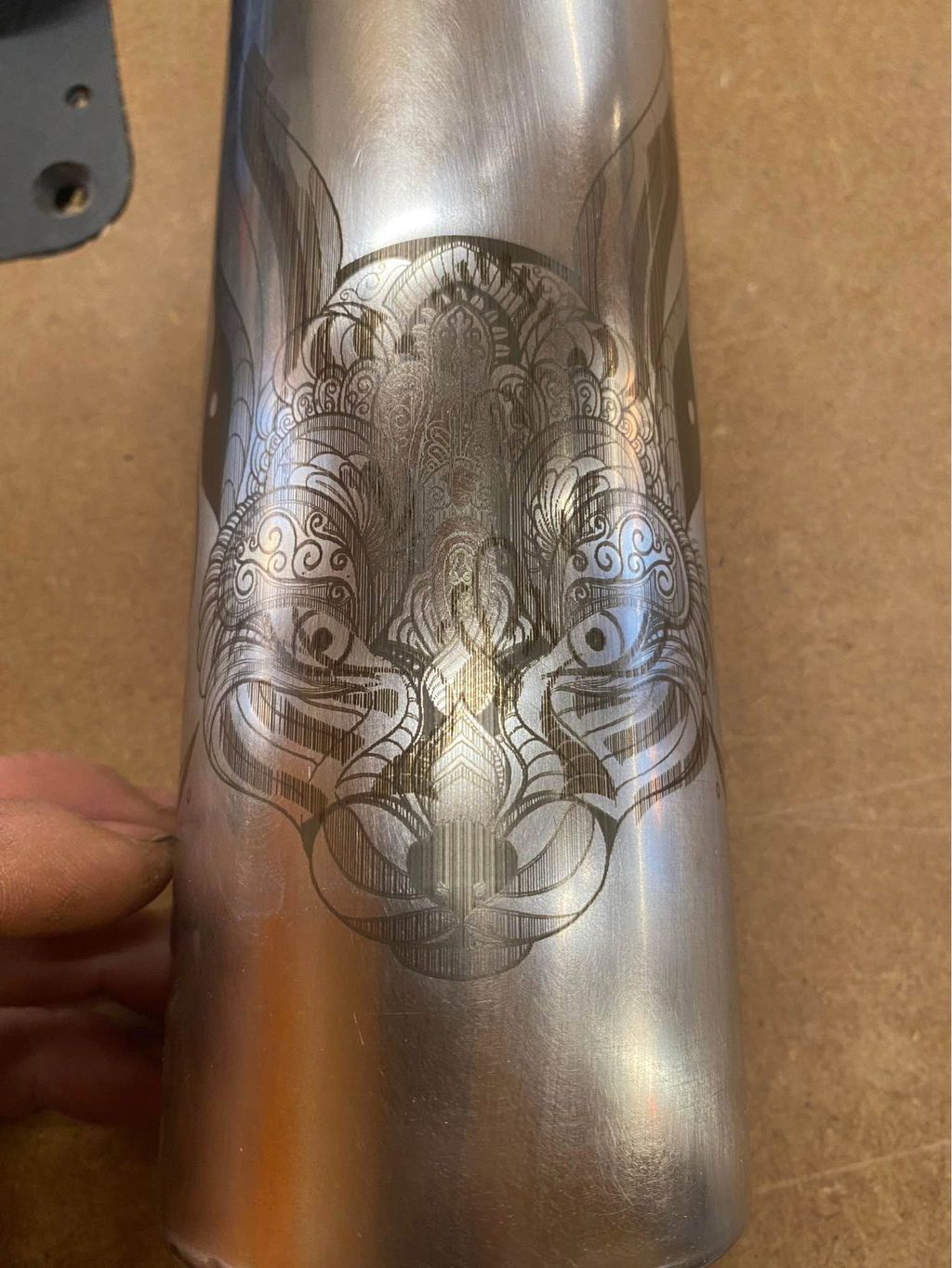

| Stainless steel | √ | ||
| Stainless steel 0.1mm | √ | √ | |
| Anodised aluminium | √ | ||
| Copper | √ | ||
| Gold | × | ||
| Silver | × | ||
| PCB board | √ | ||
| Paint metal | √ | ||
| Paint canvas | √ | ||
| Bambo | √ | √ | √ |
| Stamp rubber | √ | √ | |
| Rubber black | √ | ||

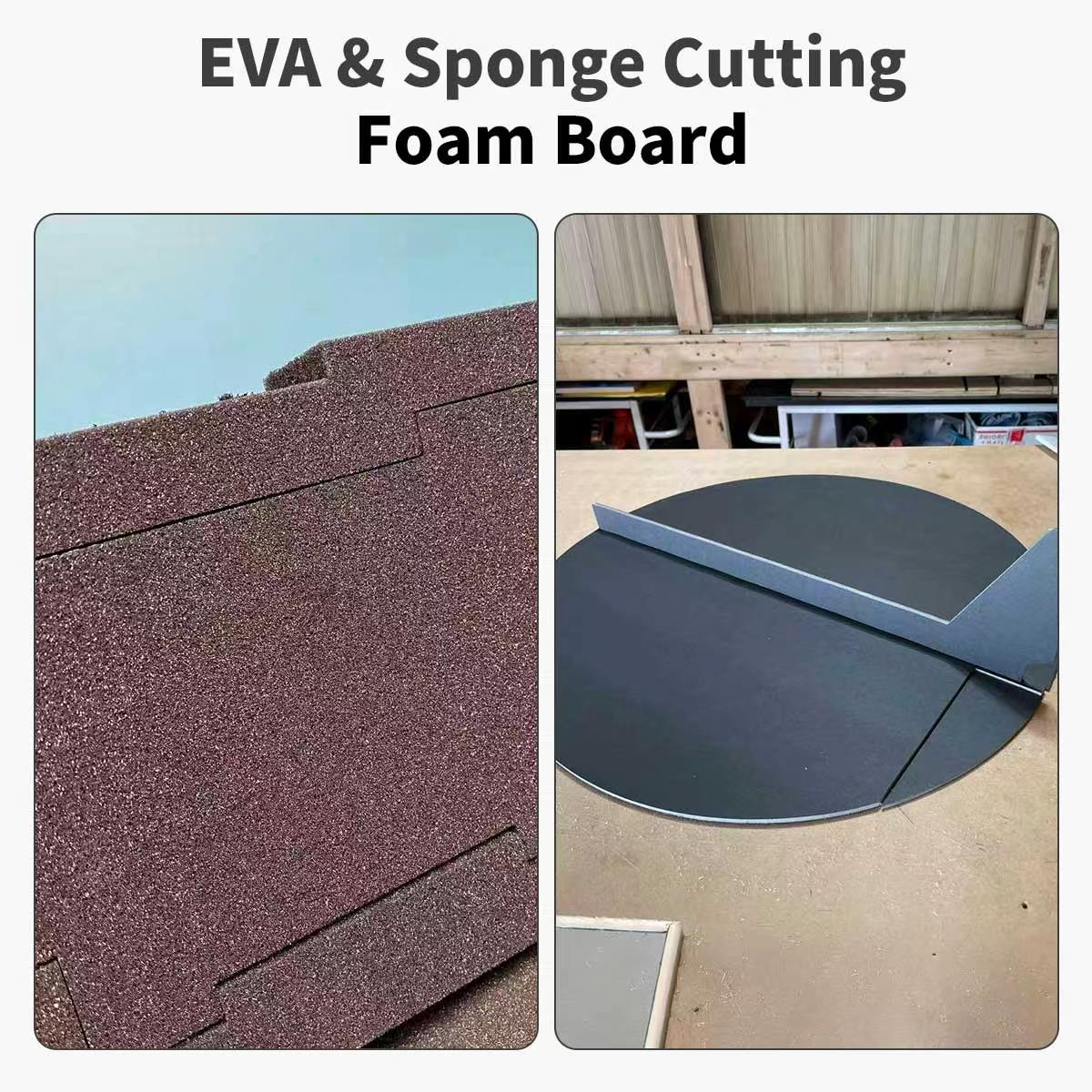

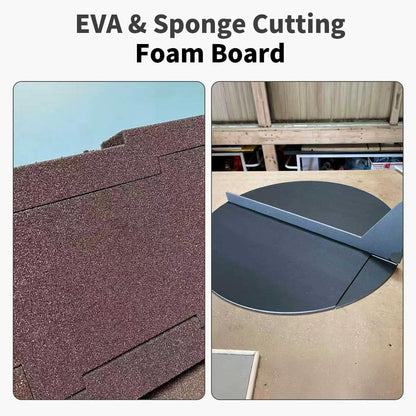

| Black foam ( EPE ) | √ | ||
| KT board white | × | ||
| EVA foam black | √ |
Features
Safety - Preventing fire risks at the source ensures genuine safety.
Enhance cutting efficiency and reduce the risk of fire.
The NEJE module excels in focus energy density and beam divergence, preventing fires during wood cutting without air assistance. Its electric Z-axis optimized cutting mode boosts layer-by-layer efficiency and minimizes the risk of carbonization and flame generation.
Other similar products, though they have similar power levels, are equipped with simpler internal optical structures, resulting in a larger focus. While this reduces the cost of production, it significantly increases the risk of fire when cutting wood without air assistance, and the engraving results are also relatively rough.
"E80 vs. Long-Focus Module"
When choosing between a Motorized Z-axis or a Long-Focus Module for your laser engraving and cutting needs, consider the following distinctions:
1. **Motorized Z-axis**: This feature is essential for achieving high precision in engraving and cutting tasks, particularly on uneven or thick materials. It allows for automatic control of the focus distance, which is crucial for maintaining consistent results across different material thicknesses. The NEJE Max 4, equipped with a motorized Z-axis, can efficiently cut materials within the 10-30mm range, which is prone to ignition, by adjusting the focus for each layer—this precise control helps prevent fires even when cutting thick materials like pine without additional air assistance .
2. **Long-Focus Module**: A long-focus module is designed for cutting thicker materials by having a longer focal length. It can handle thicker materials but may not offer the same level of detail or precision as a motorized Z-axis, especially for intricate designs or varied material thicknesses. Long-focus modules can be more prone to causing materials to ignite due to the larger amount of heat applied in a single pass .

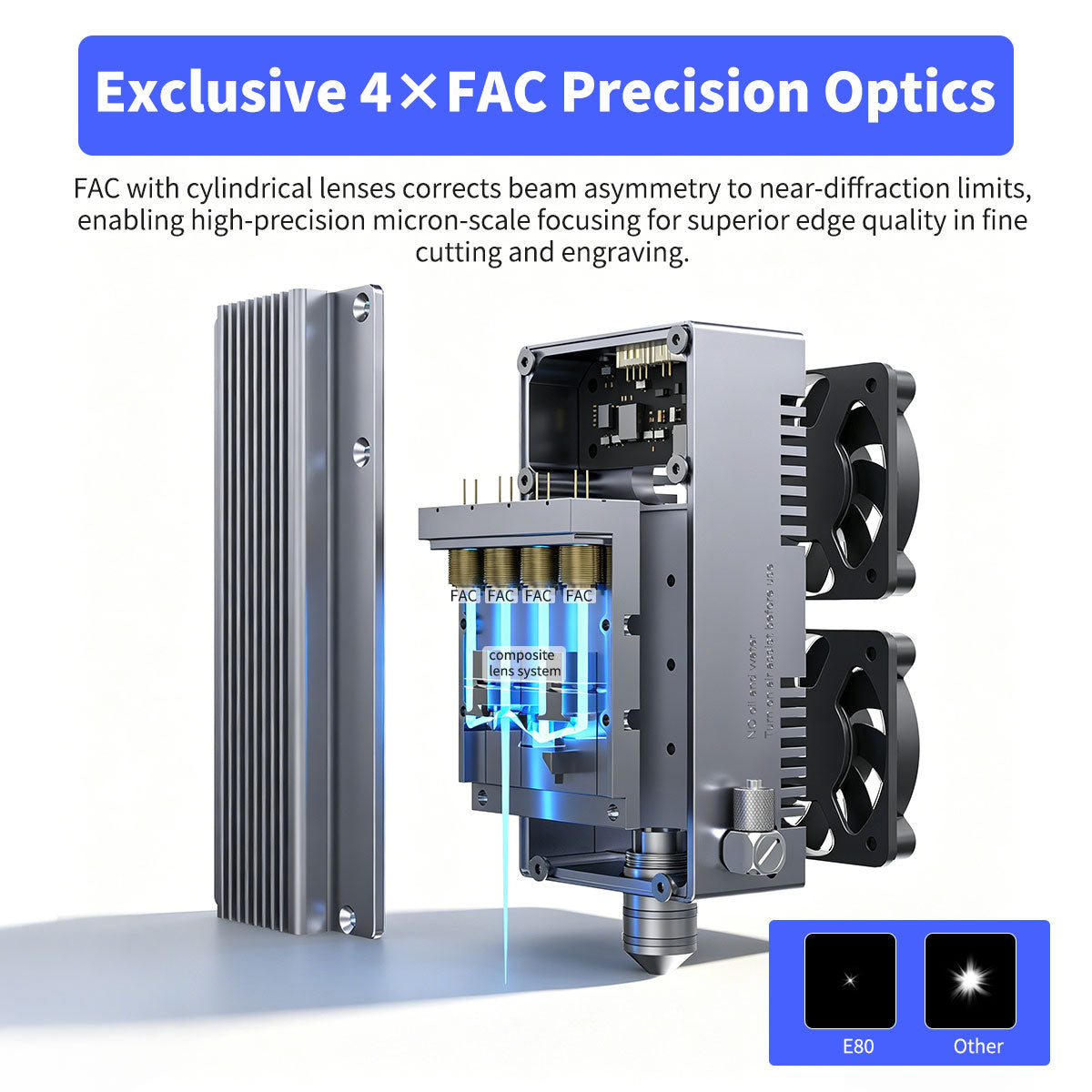

The NEJE E80 module, for instance, is designed with a complex lens system that allows for smaller focus sizes and better depth of field quality compared to other modules. It can cut through 17mm of wood cleanly in a single pass without the risk of fire, which showcases the advantage of combining a precise optical system with motorized Z-axis control . The E80 also features a unique shading design for improved aesthetics and operational experience, especially when working in open environments .
In summary, for applications requiring detailed work on a variety of material thicknesses, a Motorized Z-axis is advantageous for its precision and safety. For straightforward, thick material cutting tasks, a Long-Focus Module may suffice. However, the combination of the NEJE E80 module with the motorized Z-axis of the NEJE Max 4 offers a superior solution for both precision and efficiency in laser engraving and cutting applications.

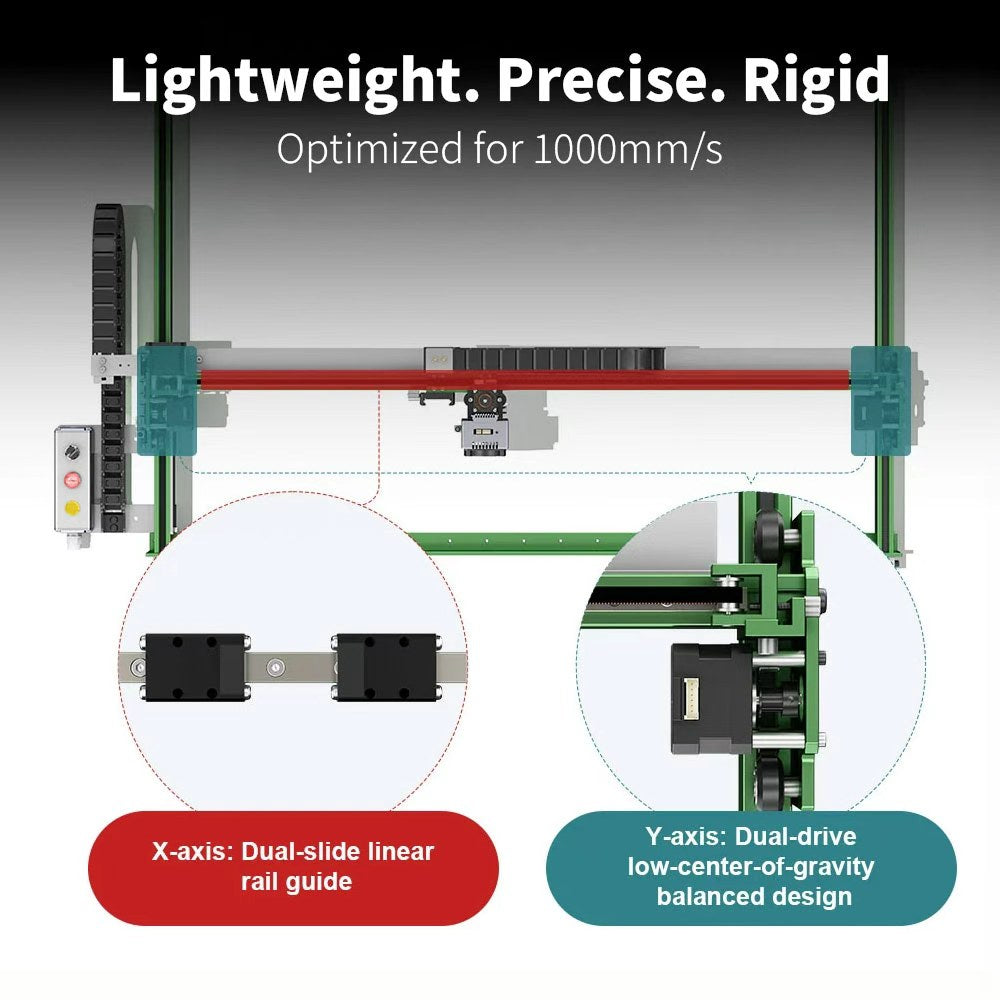

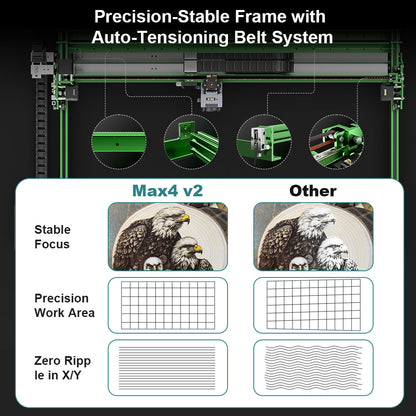

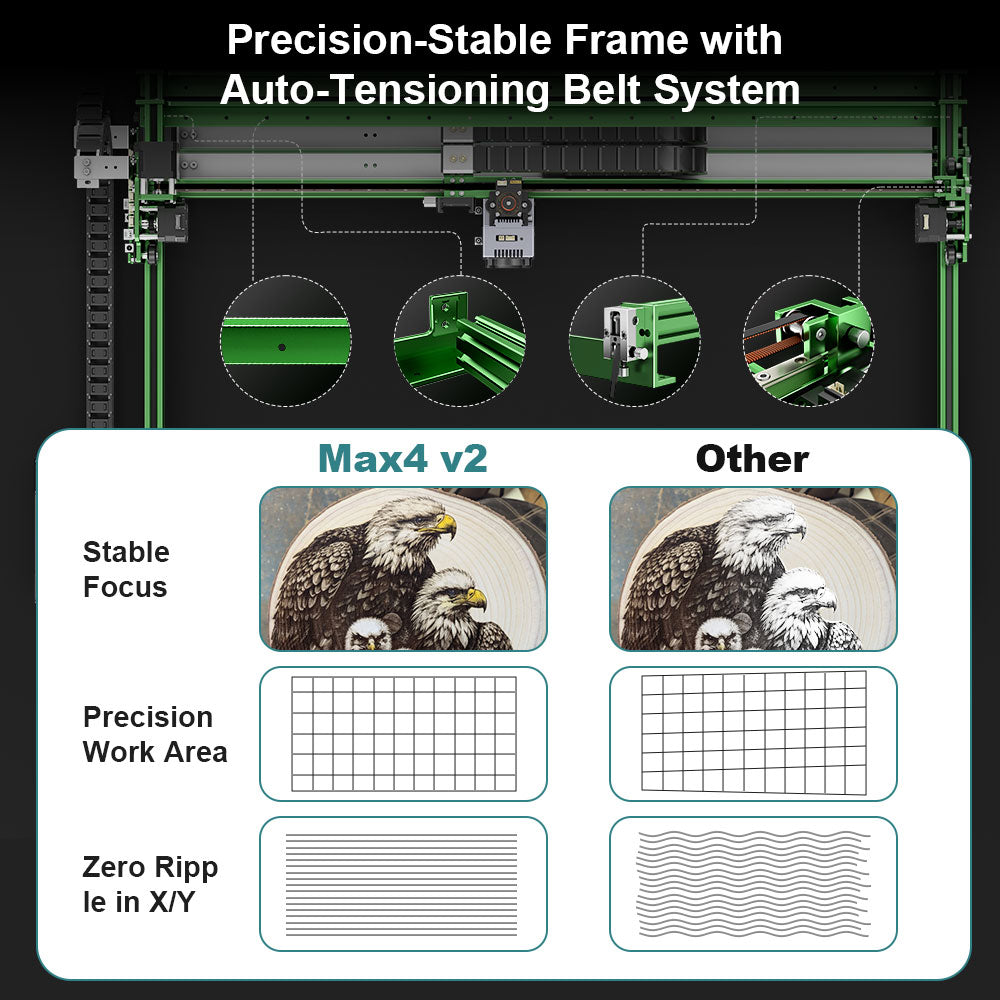

Higher Motion Accuracy
The NEJE Max 4 features an exacting internal design and manufacturing process calibrated by an industrial mother machine, setting it apart from ordinary DIY assemblies. Both the X and Y axes are equipped with belt tension adjusters to precisely eliminate belt tolerances. The X-axis utilizes an industrial linear rail, while the Y-axis employs a calibrated, highly smooth linear gantry structure rail. The repeat positioning accuracy for the X, Y, and Z axes reaches 0.01mm.
Repeat positioning accuracy: 0.01mm
500mm/s
Thanks to the E80's exceptional focal energy density and smooth linear industrial rails, the NEJE Max 4 can achieve a scanning speed of up to 500mm/s.
Expansion for Max 4
Rich expansion capabilities: The NEJE Max 4 supports expansion features for M8, M7, Door, and independent A-axis, and NEJE engineers have designed a safe relay control module for these interfaces, high-pressure pneumatic solenoid valves, emergency stop switches, flame detection modules, and rotating axes for automated linkage control processes and safety designs. By expanding and pairing with NEJE control software or LightBurn software, it is easy to build fully automatic functions such as gas assistance, smoke exhaust, cooling, lighting, smoke detection, safety doors, and vision. The NEJE team is also continuously developing new accessories based on this to help users obtain longer-term product value.
NEJE Max 4 supports both 12V and 24V inputs, but it is important to note that: the mainboard input voltage equals the laser module input voltage equals the M8 and M7 interface voltages. This allows the Max 4 to be compatible with NEJE's 12V functional modules. The M7 and M8 interfaces can be connected to devices with a power output of less than 20W. If the A-axis interface requires connection to other stepper motors, an additional driver board must be purchased to adapt to all rotating shafts available on the market.
By using a relay module or pneumatic solenoid valve module, higher quality and more imaginative processes can be achieved during the handling of each layer of engraving, cutting, or other crafting techniques with the assistance of external processing equipment.
The NEJE Max 4 supports a variety of accessories to comprehensively enhance the product's user experience, safety, functionality, and automation capabilities. NEJE accessories include a gas collection and protection enclosure, extension rods, honeycomb boards, large working areas, automatic control relays (for constructing automatic air assistance and smoke exhaust systems), automatic control air valve modules (for constructing high-pressure air assistance systems), automatic control air pumps, 12V or 24V series laser modules (please pay attention to voltage matching), and door interface safety protection expansions (which will automatically stop operation when a flame is detected).
View Expansion AccessoriesSoftware

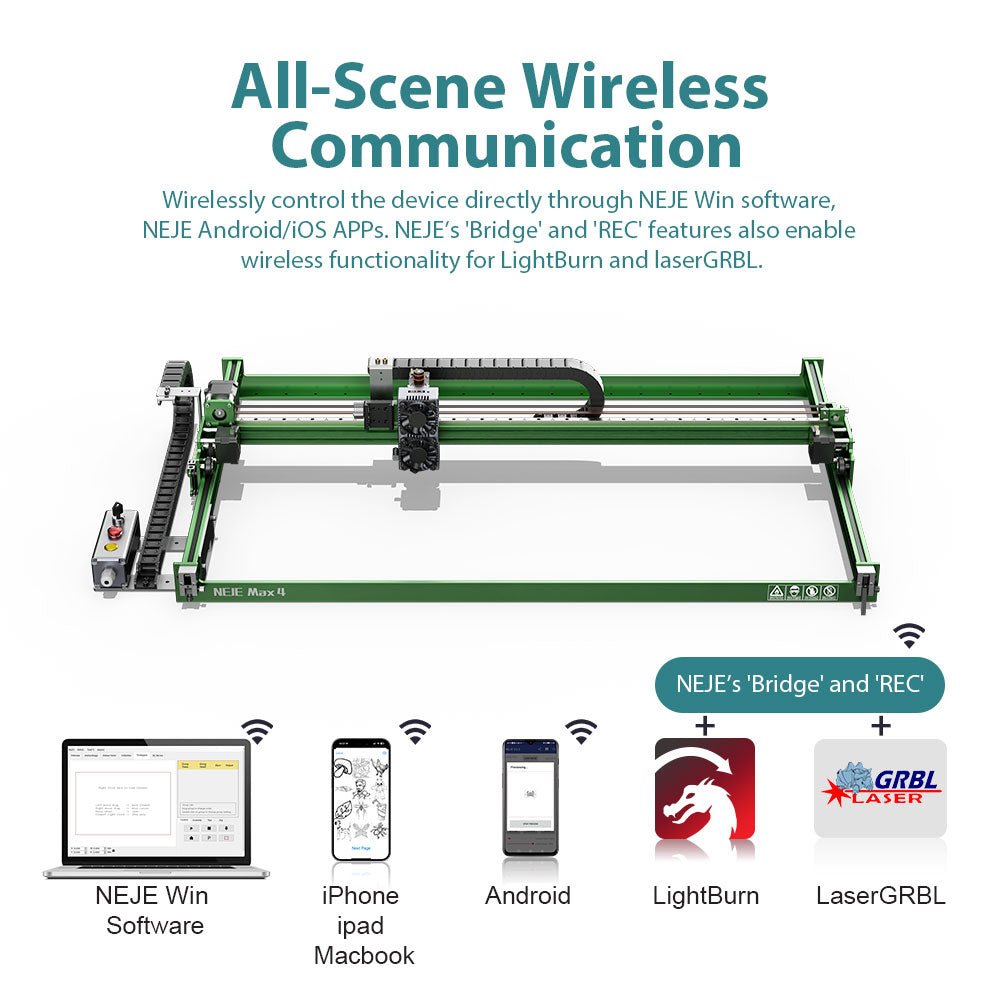

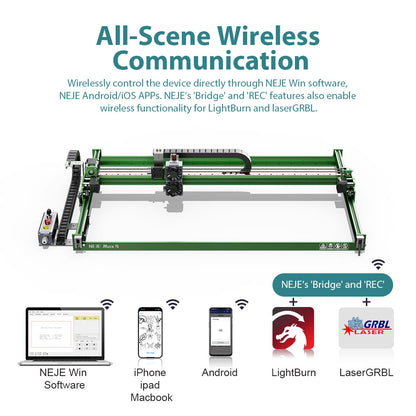

Lightburn: The NEJE series of devices is perfectly compatible with LightBurn, including full compatibility with Z-axis, A-axis, M7, and M8 interfaces, and has resolved numerous compatibility issues that existed between the native GRBL firmware and LightBurn. To enhance the operational efficiency and user experience of LightBurn software with laser hardware devices, NEJE has innovatively developed a wireless "bridge" feature for LightBurn. This enables the LightBurn software to communicate with devices in real-time via wireless, eliminating the spatial constraints imposed by USB cables and the cumbersome operations associated with SD cards. Additionally, NEJE has developed the "REC" feature for LightBurn software. Compared to the traditional method where LightBurn requires a computer to be connected to a device in real-time, this new feature allows for the management of multiple devices through LightBurn without the need for additional software or computer resources. This significantly improves the operational efficiency of LightBurn, reduces costs, and enhances the user experience.
laserGRBL: NEJE's optimization of the GRBL firmware is also applicable to the LaserGRBL software, allowing users to control NEJE devices wirelessly through LaserGRBL, making operations more efficient.
NEJE Software: The NEJE software has made numerous optimizations to enhance the operational experience and efficiency for the integration of NEJE devices with third-party software such as LightBurn and LaserGRBL. It's like a transformer robot, capable of taking on various roles to help users expand the possibilities of creation and manufacturing. At the same time, NEJE continuously provides users with professional basic functions for multi-layer and multi-process operations, and offers more valuable feature upgrades for free to users through OTA and cloud services.
Learn More to Download Page...Specification
Frame Size (L – W – H): 970x582x60mm

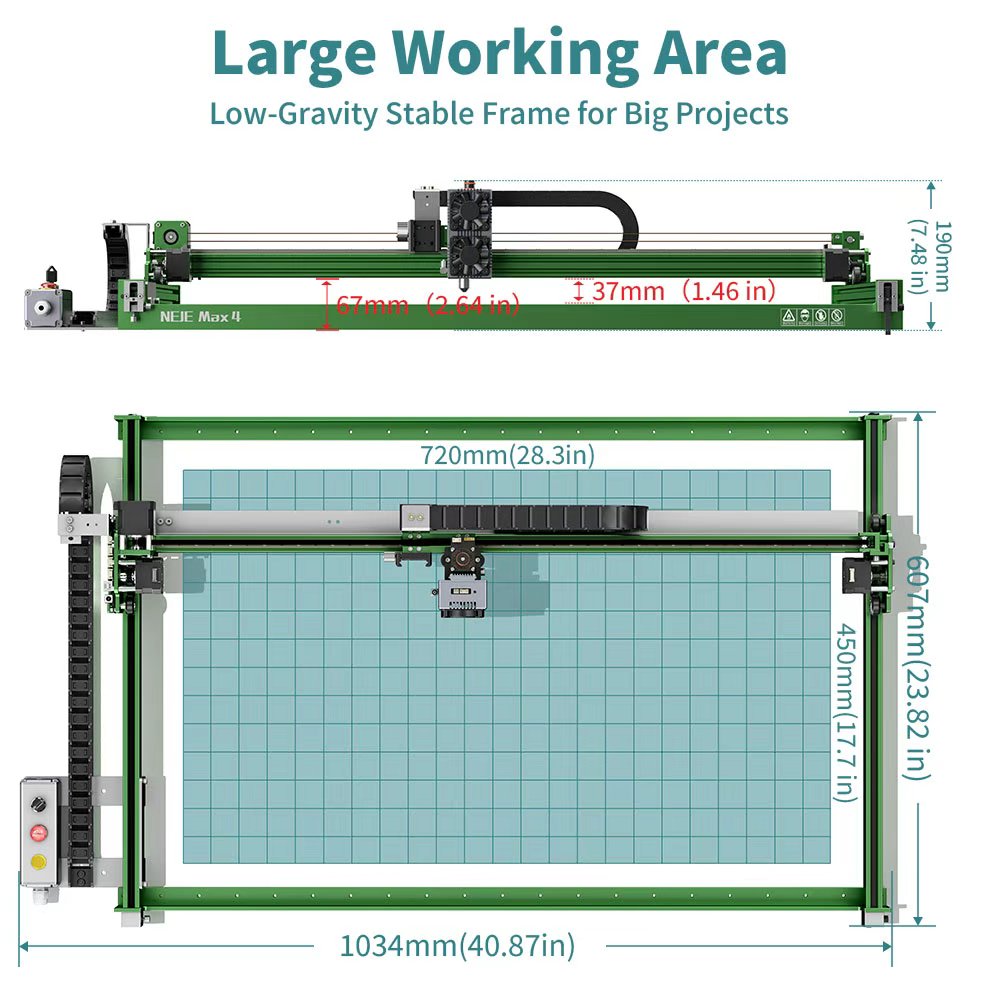

Working Area( X – Y): 750 x 460mm, Extends to 750x1030mm(about 29.5x40.5 inch)
X axis：Industrial straight track, bottom CNC straight line correction
Y axis：NEJE diamond CNC linear track, smooth and durable
Z axis：Industrial linear track
A axis：Rotary axis expansion
Y axis Extension: Yes, NEJE will provide linear extension track, and the Y axis can be extended to 1030mm.
Controller: The latest 32-bit high-performance control chip.
Silent driver chip: yes
Limit Switch: Build in X Y Z
Homing Repeat Position Accuracy: 0.01mm
Repeat Position Accuracy: X Y: 0.01mm; Z: 0.01mm
Recommended acceleration and top speed: 500mm/s
Vertical Carving: Yes(90°)
Motion Accuracy: 0.01mm. Max 2032 dpi
Input Voltage: 12V or 24V, Match according to module voltage
Interface: 5.5*2.1, Max 6A
Compatible: all 12V and 24V NEJE modules
M7,M8,Door Extension： Yes
Lightburn Offline Control： Yes
Lasergrbl Offline Control:Yes
BLE Bluetooth Function:Support Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
App control： Yes
MEMS protection： Yes
NEJE Software OTA Upgrade: Yes
Software: NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL
Firmware: build in NEJE fireware and GRBL 1.1f(optimized)
Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
File Format Supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.
Q & A
TUTORIALS VIDEOS

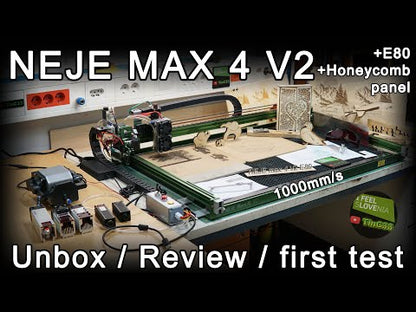

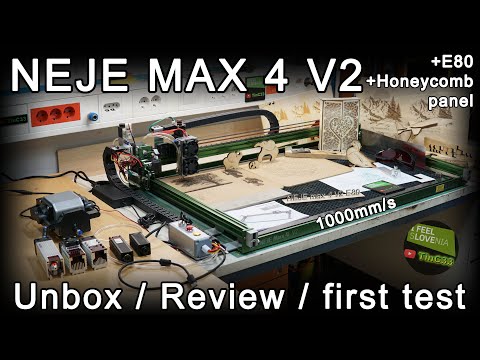

- Unboxing and Assembly
- Adjust Your Machine to Its Best

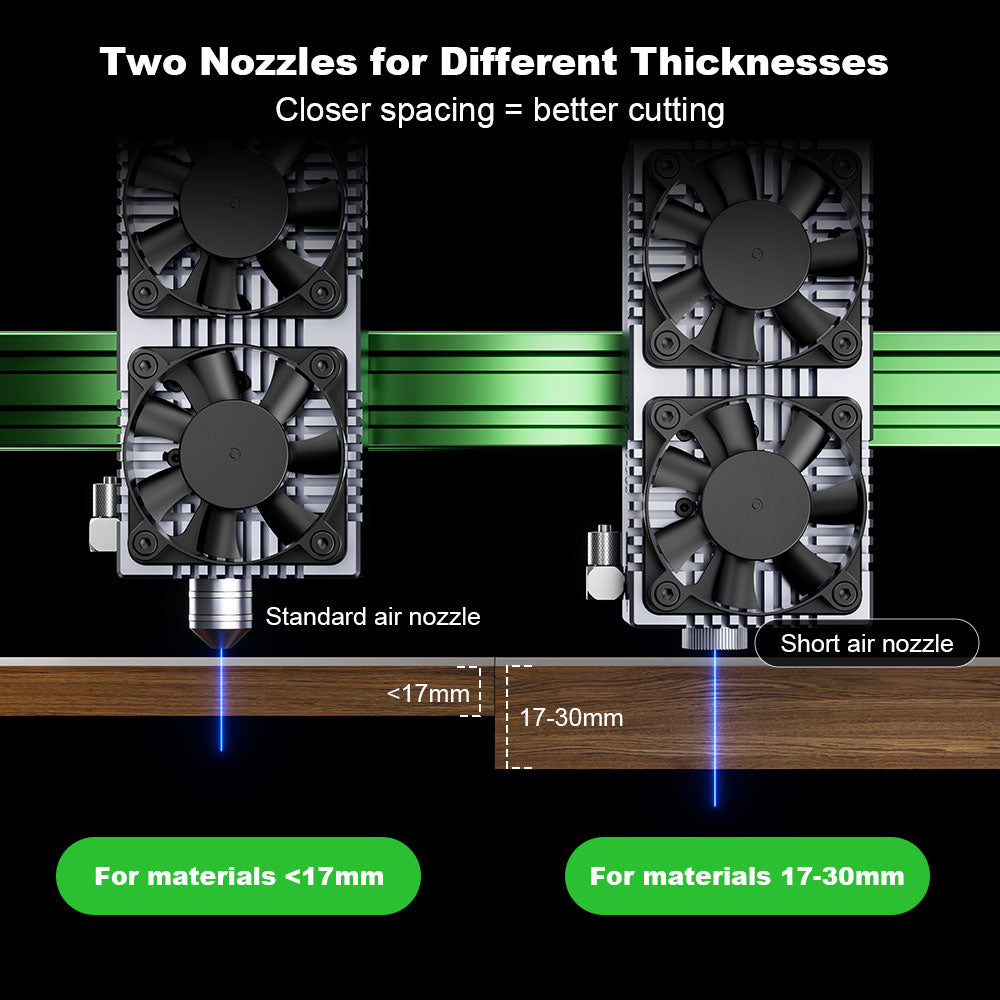

- How to Use E80 Nozzles and Air Assist
- NEJE Air Assist Connection
- Software Set-Up
- Let's make a simple project
- Plotter Pen
- How to Set Z Offset and Cut Deeper?
- Maintain the Machine
- Extension Rod | Software Set-Up
- Rotary Set-Up | NEJE Max 4 E80
- Lightburn & LaserGrbl Offline
- How to Make Deep Engravings
- 3 Methods to Use Motorized Z Axis
- Camera Calibration on 1030*750mm Working Area
