NEJE E40 Diode Laser Module - Multi-lens Technology - 24V
Ships from Europe: Delivers to European Union Member States, Switzerland, Norway, Albania, Iceland, Serbia, Ukraine, and Turkey, United Kingdom.
Ships from US: Delivers to the United States (excluding Alaska, Guam, Hawaii, Puerto Rico, US Armed Forces Americas, US Armed Forces Europe, and US Armed Forces Pacific).
Ships from China: Delivers to Australia, Canada, New Zealand, Singapore, South Korea, Japan, South Africa, Mexico, and other countries/regions.

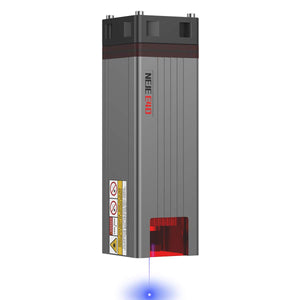

NEJE E40 Laser Module
2.17mm Leather,200mm/min,1 Pass
10mm Black Acrylic,80mm/min,3 Passes
0.07mm stainless Steel,200mm/min,1 Pass
3mm MDF,300mm/min,1 Pass
3mm Plywood,350mm/min,1 Pass
0.05mm Ultra Small Incision
Black Andonized Aluminum engraving speed:8000mm/min
Interface
12V&24V: Power positive .
GND: Power ground or power negative.
TTL/PWM: TTL = PWM, input 3.3V~24V to turn on laser module, conect to GND to turn off laser module.
Temperature: do not connect, please ignore.
Connect 12V&24V and GND pin to 12V&24V power, ensure the power adapter is sufficient, >2A is recommended.
Connect TTL/PWM pin to your control board PWM output pin.
COMPATIBILITY
Compatible with NEJE 3 Pro, NEJE Master 2, NEJE Master 2s, NEJE 3, NEJE Max 4, NEJE Max 4 V2, NEJE 3 Max V2, Other Brand Laser Engraver, CNC Router, 3D Printers, DIY CNC Machine, Other CNC Machine, etc
How to Make Laser Module Work with Your Control Board. tutorial
Specification
E40 Laser Module
Focus: 0.03x0.04mm （10000W/m²）
Focus method: fixed focus( 5mm from the radiator )
Optical power: Pulse 12W+, CW 11W
Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment
Wavelength: 450nm
Weight: 280g
Module Size: 40x48x130 mm
Input: DC 12V &24V >2A
Interface: 4pin PH2.0 + ( 2pin DC24V & 12V extra power )
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc...
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials.Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Protective window lens: Yes ( withstand 1000℃ )
Original registered brand: Yes
