NEJE Max 4 V2 Hybrid Laser Engraver & Cutter for wood MDF, Cardboard, Stainless steel, Painted metal, Fabric, Leather, PU, PVC, Plastics, PCB, Aluminum oxide, Electroplated layers, Glass, Ceramics, Slate, etc.
Ships from Europe: Delivers to European Union Member States, Switzerland, Norway, Albania, Iceland, Serbia, Ukraine, and Turkey.
Ships from US: Delivers to the United States (excluding Alaska, Guam, Hawaii, Puerto Rico, US Armed Forces Americas, US Armed Forces Europe, and US Armed Forces Pacific).
Ships from UK: Delivers to the United Kingdom.
Ships from AU: Delivers to Australia.
Ships from China: Delivers to Canada, New Zealand, Singapore, South Korea, Japan, South Africa, Mexico, and other countries/regions.
Some expansion accessories are stocked in corresponding overseas warehouses. Please select the appropriate shipping origin to ensure timely delivery.
Features of Max4V2
1. 1200mm/s Engraving Speed & Precision Performance
NEJE Max 4 V2 optimizes its mechanical structure with a low physical center of gravity, low runout, lightweight design, and high-precision rigid framework. Paired with the E80 lightweight module and its high-energy-density optical system, it fully harnesses the E80’s performance—delivering perfect scanning/drawing precision during high-speed image rendering, material cutting, and engraving.
2. Electric Z-Axis Compatibility for Versatility
NEJE Max 4 V2 supports simultaneous mounting of the laser module and electric Z-axis module. The electric Z-axis allows:
- Hands-free focus adjustment;
- Improved cutting efficiency/quality for thick materials;
- Addition of knife heads, pen heads, thermal heads, or glue dispensers for cutting/additive operations on diverse materials—e.g., thermal head for layer-by-layer foam board/acrylic cutting, knife head for sticker cutting, pen head for engineering/blueprint drawing, and glue dispenser for filling.
3. Remote Full Automation Expansion
- Expansion of an independent A-axis (standard rotary axis);
- Gas-assisted automation via M8 port;
- Outdoor smoke extraction automation via M7 port;
- Safety trigger automation via Door port.
Paired with NEJE’s “Bridge” software and vision system, users can wirelessly control the device fully automatically via Lightburn—simply place material on the platform for efficient, hands-off processing.
4. High-Precision Large-Area Work Platform
NEJE Max 4 V2 uses a fully CNC-processed design: linear rails and Y-axis rails are precisely calibrated/matched via industrial CNC machines. It offers:
- Standard area: 700×460mm (expandable to 700×1030mm);
- Innovatively designed timing belt tension adjusters for stable tension system and easy maintenance—ensuring reliable motion performance and image quality.
5. Global After-Sales Service
Founded in 2013, NEJE has served 1 million+ global users with a trusted reputation. It offers:
- Global warehousing and online service network (NEJE customer service, WIKI, forum) for fast, professional support;
- Replace-only policy for all accessories;
- 2-year warranty for non-human damage to laser modules/control systems;
- OTA online lifetime free software upgrades.
This translation retains all original details, uses industry-standard terminology, and aligns with technical documentation conventions—ensuring clarity, accuracy, and professionalism.
| Engraving Size | Maximum Speed |
|---|---|
| 700×460mm (27.6×18.1")，expandable to 700×1030mm (27.6×40.6") | Engraving speed: 1200mm/s, Cutting speed: 1200mm/s |
| Transmission Method | Software |
| BLE, USB | NEJE win software, LaserGRBL, Lightburn, NEJE Android APP, iOS\iPAD\iMAC APP. |
| Power Supply | Quality Certification |
| Input GaN 100-240V AC, 50/60HZ, output 24V 5A | CE, FCC, RoHS |
| Device Size | Repetition Accuracy |
| 1034x607x180mm | 0.01mm |
Detail of E80 Laser Module
1. Unmatched Power Density
NEJE E80 module features exclusive compound lens technology (external FAC + compound lens), achieving a 90μm physical resolution limit—this is 1/4 the focal spot size of 20W-class counterparts, 1/6 that of 40W modules, and 1/8 that of 70W systems. It delivers faster cutting, higher cutting quality, and richer engraving details.
2. 10× Longer Lifespan & Industry-Exclusive 2-Year Warranty
NEJE E80 uses top-tier original laser diode light sources. Unlike ordinary modules (which use a fiber optic process that disrupts the diode’s original gas protection environment, limiting lifespan to ~1,000 hours), NEJE’s technical team ensures the LD operates stably for 20,000 hours without contaminating the core chip. The module comes with an industry-first 2-year warranty.
| Laser Wavelength | Spot Size |
|---|---|
| 455±5nm | 90 µm*90 µm |
| Laser Optic Output Power | Interface |
| 24W | 24V+, -, GND, Temperature Feedback |
| Engraving Materials | Cutting Materials |
| Wood,Rubber, hardwood, bamboo, cardboard, painted metal, fabric, PU/PVC Leather, stainless steel, selected plastics, leather, PCB, aluminum oxide, electroplated layers, glass, ceramics, slate, etc. | Wood & plywood < 30 mm, MDF < 10 mm；Leather < 4 mm, PU/PVC Leather < 4 mm；Steel plate 0.15mm; Corrugated cardboard < 18 mm, Hard cardboard 3 mm, Scratch paper Weeding invitation paper, Colored A4 paper, Kraft paper; Vinyl, Non-woven, ABS sheet < 2 mm - Dark, color PVC sheet 2 mm - Dark color; Cotton, Linen, Velvet, Canvas, Fabric polyester, Fabric synthetics; |
| Weight | Warranty |
| 560g | 2 years |
Unparalleled Energy Density
Ultra-fast Deep Engraving
1200mm/s - 100% Power for High-Performance Output
Canvas Art
Spray-Painted Ceramic Art
Spray-Painted Metal
Rapid Wood Carving
Ceramic Photochemical Reaction Carving
Stone Slab Carving
Fabric Carving
Stainless Steel Carving & Colored Carving
Glass Engraving
Transparent Acrylic Engraving
Effortlessly and rapidly cut high-density and heat-sensitive materials.
5mm MDF, 200mm/min, 1 pass
4mm leather, 400mm/min, 1 pass
10mm Cherry Wood, 250mm/min, 1 pass
10mm Black Acrylic, 180mm/min, 1 pass
12mm Basswood, 180mm/min, 1 pass
High-quality cutting of thick materials
30mm Pine Wood, 200mm/min, 5 passes
30mm Black Acrylic, 100mm/min, 5 passes
20mm pinewood, 60mm/min, 1 pass
17mm Pine Board, 300mm/min,2 passes
E80 MATERIAL & DATABASE
| Material | Marking | Carving | Cutting |
|---|---|---|---|
| Pine board 12mm | √ | √ | √ |
| Pine board 17mm | √ | √ | √ |
| Solid wood (Spruce Plank) 30mm | √ | √ | √ |
| Birch plywood 5mm | √ | √ | √ |
| Birch plywood 10mm | √ | √ | √ |
| Birch plywood 18mm | √ | √ | √ |
| MDF board 5mm | √ | √ | √ |
| MDF board 8mm | √ | √ | √ |
| MDF board 18mm | √ | √ | √ |
| Acrylle black 5mm | √ | √ | √ |
| Acrylle black 10mm | √ | √ | √ |
| Acrylle black 18mm | √ | √ | √ |
| Acrylle black 30mm | √ | √ | √ |
| Brushed Acrylle transparent | √ | ||
| Leather<2mm | √ | √ | √ |
| Leather<4mm | √ | √ | √ |
| PU/PVC Leather<2mm | √ | √ | √ |
| PU/PVC Leather<4mm | √ | √ | √ |
| Corrugated cardboard <8mm | √ | √ | √ |
| Corrugated cardboard <18mm | √ | √ | √ |
| Hard Cardboard 1.5mm | √ | √ | √ |
| Hard Cardboard 2mm | √ | √ | √ |
| Hard Cardboard 3mm | √ | √ | √ |
| Scratch paper | √ | √ | √ |
| Weeding invitation paper 0.5mm | √ | √ | √ |
| Colord A4 Paper - not white | √ | √ | √ |
| A4 Paper white | √ | ||
| Kraft paper 0.5mm | √ | √ | |
| Vinyl | √ | ||
| Non-woven | √ | ||
| Cotton | √ | √ | |
| Linen | √ | √ | |
| Velvet | √ | √ | |
| Canvas | √ | √ | |
| Fabric polyester | √ | √ | |
| Fabric synthetics | √ | √ | |
| ABS sheet <2mm - Dark Color | √ | √ | √ |
| PVC sheet 2mm - Dark Color | √ | √ | √ |
| Plastic white paint | √ | ||
| PPR | √ | ||
| Bakelite | √ | ||
| Brushed glass | √ | ||
| Brushed ceramic | √ | ||
| Cobblestone | √ | ||
| Slate | √ | ||
| Stainless steel | √ | ||
| Stainless steel 0.1mm | √ | √ | |
| Anodised aluminium | √ | ||
| Copper | √ | ||
| Gold | × | ||
| Silver | × | ||
| PCB board | √ | ||
| Paint metal | √ | ||
| Paint canvas | √ | ||
| Bambo | √ | √ | √ |
| Stamp rubber | √ | √ | |
| Rubber black | √ | ||
| Black foam ( EPE ) | √ | ||
| KT board white | × | ||
| EVA foam black | √ |
Benifit of Motorized Z axis
No physical reset button; detected via NEJE's sensorless reset technology.
| Weight | Stroke |
|---|---|
| 285g | 20mm (17mm available) |
| Control Method | Load Capacity |
| Electric and manual | 2kg |
| Thickness | Precision |
| 25mm | 0.01mm |

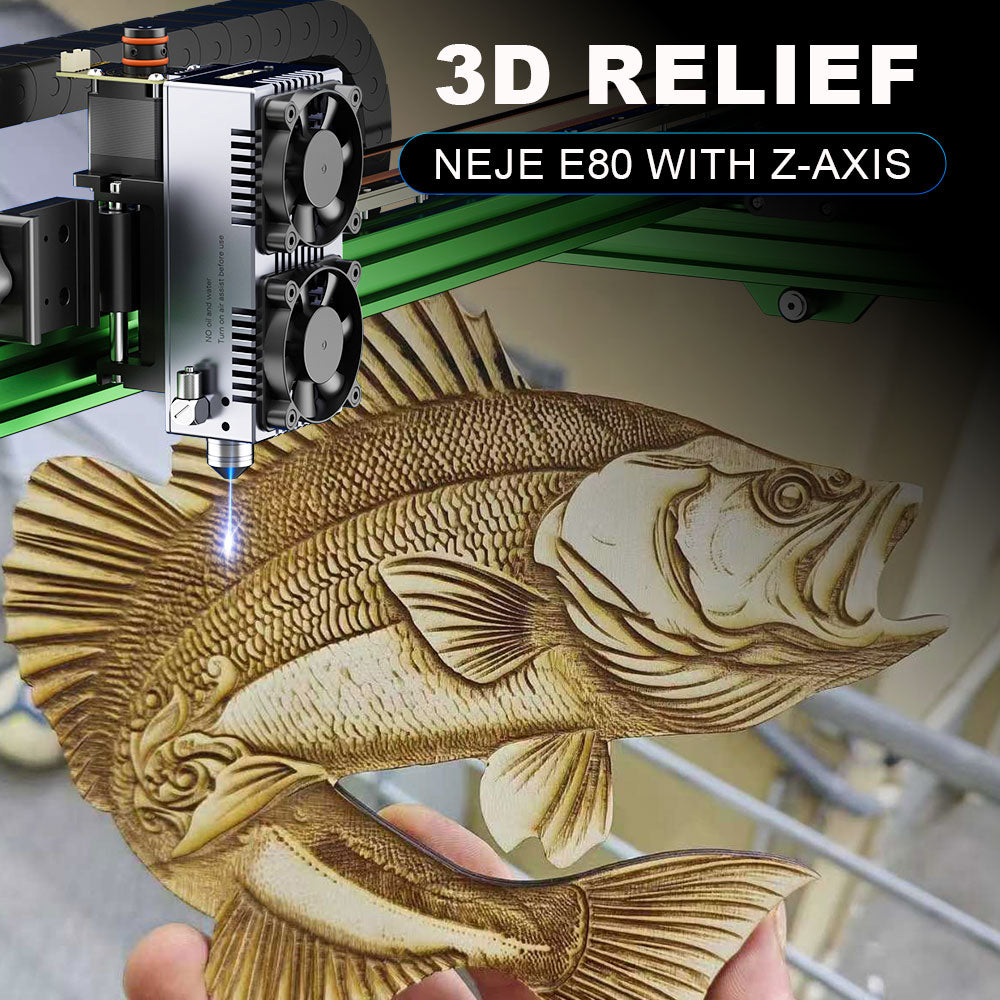

New Process
Heatable Tips, Blade, and Drawing Pen Enable Cutting, Engraving, Filling, and Other Creative Craft Effects on Irregular Material Surfaces
Drawing Pen / Blade
Engraving on uneven materials
Quality and Efficiency Improvement
Via the Z-axis, layer-by-layer cutting enhances the efficiency and quality of each pass when processing thick materials—maximizing cutting efficiency, improving cutting verticality, and ensuring cleaner material edges. By utilizing the segment with the highest laser energy density for each cut, this method reduces thermal damage impact and minimizes the risk of material ignition.
Safety-First Layer-by-Layer Cutting
Free your hands
FAQs
Brand Story & Mission
NEJE®: Nexus of Elegance & Jet-edge Efficiency!
Unlocking the Infinite Possibilities of Light Technology in Life, Art & Productivity
Our core team comprises artists, product managers, optical engineers, mechanical engineers, and electronics/software specialists. With dedicated optics, mechanics, and electronics labs plus in-house manufacturing, we've built a comprehensive innovation and quality control system focused on "Multi-Disciplinary Applications of Light Technology". We provide global creators, artists, and businesses with:
• Innovative process modules & equipment
• Hardware/software motion control systems
• Global express delivery & online service network
NEJE: Pioneer & Innovator in Semiconductor Laser Equipment
▶ 2013 - World's first desktop mini diode laser machines (NEJE KZ/BL) launched, serving 500,000+ global users
▶ 2017 - Introduced portable NEJE Master/Max series, bringing laser technology into everyday life and artistic creation
▶ 2019 - Pioneered 455nm spatial optics technology; released the first high-power blue module (classic A40640 remains a creator favorite)
▶ 2022 - Launched NEJE E80 quasi-industrial module with unique compound lens technology for premium efficiency and industrial-grade durability
▶ 2024 - Hosted the 1st Global Digital Art Competition; creators from 40+ countries (murals, geometric light artists, architects, etc.) shared works, gained inspiration, and received NEJE sponsorship
▶ 2025 - The NEJE Max4 V2 workstation was launched, introducing groundbreaking innovations in motion control systems. While maintaining exceptional response and scanning precision, it stands as the world's only diode laser platform achieving 1200mm/s —alongside Z-axis vertical movement—on a single mechanical work platform, elevating creative and production efficiency to unprecedented levels.
12 Years of Excellence. Industry Firsts.
✅ Own laser module manufacturing facility
✅ 2-year free warranty on semiconductor laser products (direct module replacement, no repairs)
✅ Instant overseas warehouse shipping (EU/US/UK/Australia/Brazil/China)
✅ Unique SN code for every module - register online or via purchase record for standard forum-based after-sales service
Comprehensive Online Support
▸ NEJE Wiki - Device/module/software downloads, real-time updates & operation guides (model-specific electronic manuals)
▸ NEJE Idea - "Where Cutting-Edge Materials, Craftsmanship & Imagination Converge"
▸ Facebook Community - Explore science & art possibilities with creators, enthusiasts & the NEJE team
▸ NEJE Forum - After-sales support, technical discussions, improvement suggestions, documentation & technical guidance. Register your product SN for immediate rights protection
Connect With Us: YouTube | Facebook | Instagram
The NEJE Team - We're innovators who balance science with real value, perfectionists pursuing material and artistic excellence, and explorers of human-centered living. We believe steady progress creates innovations that truly resonate with both individual and commercial users.
