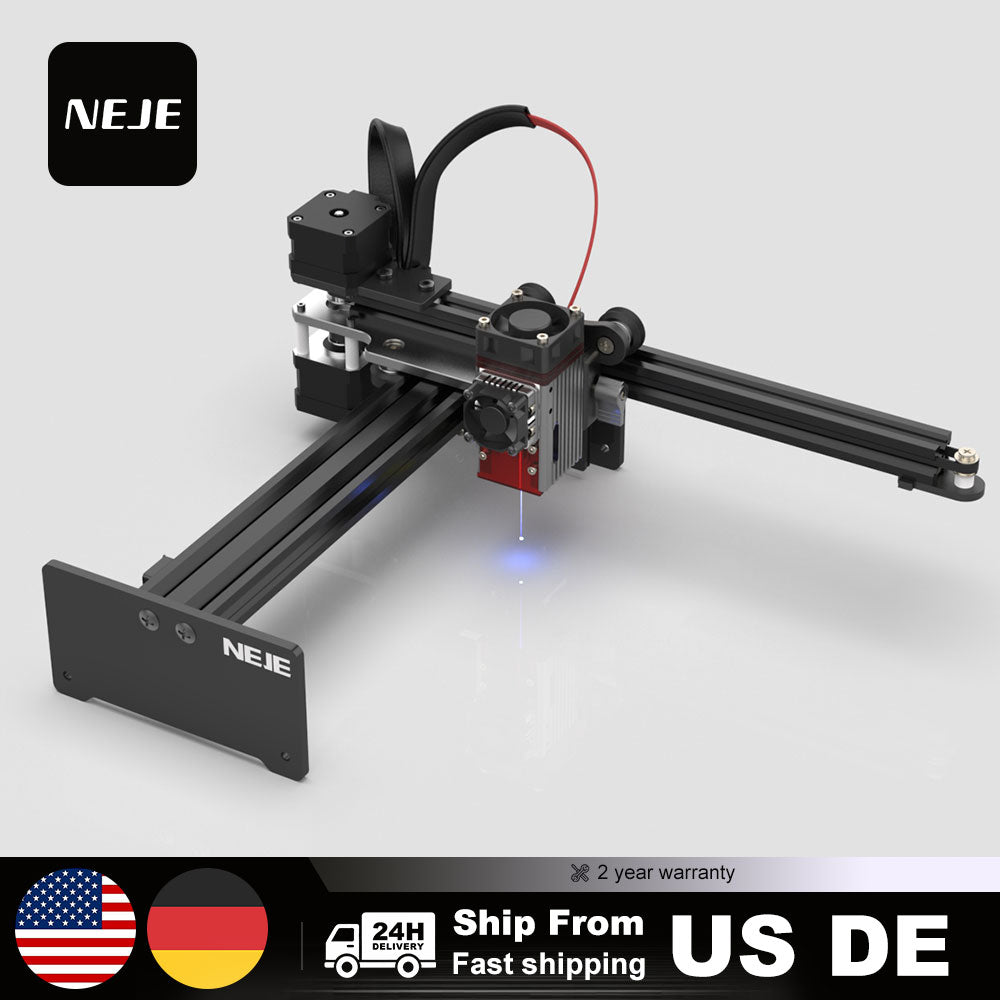

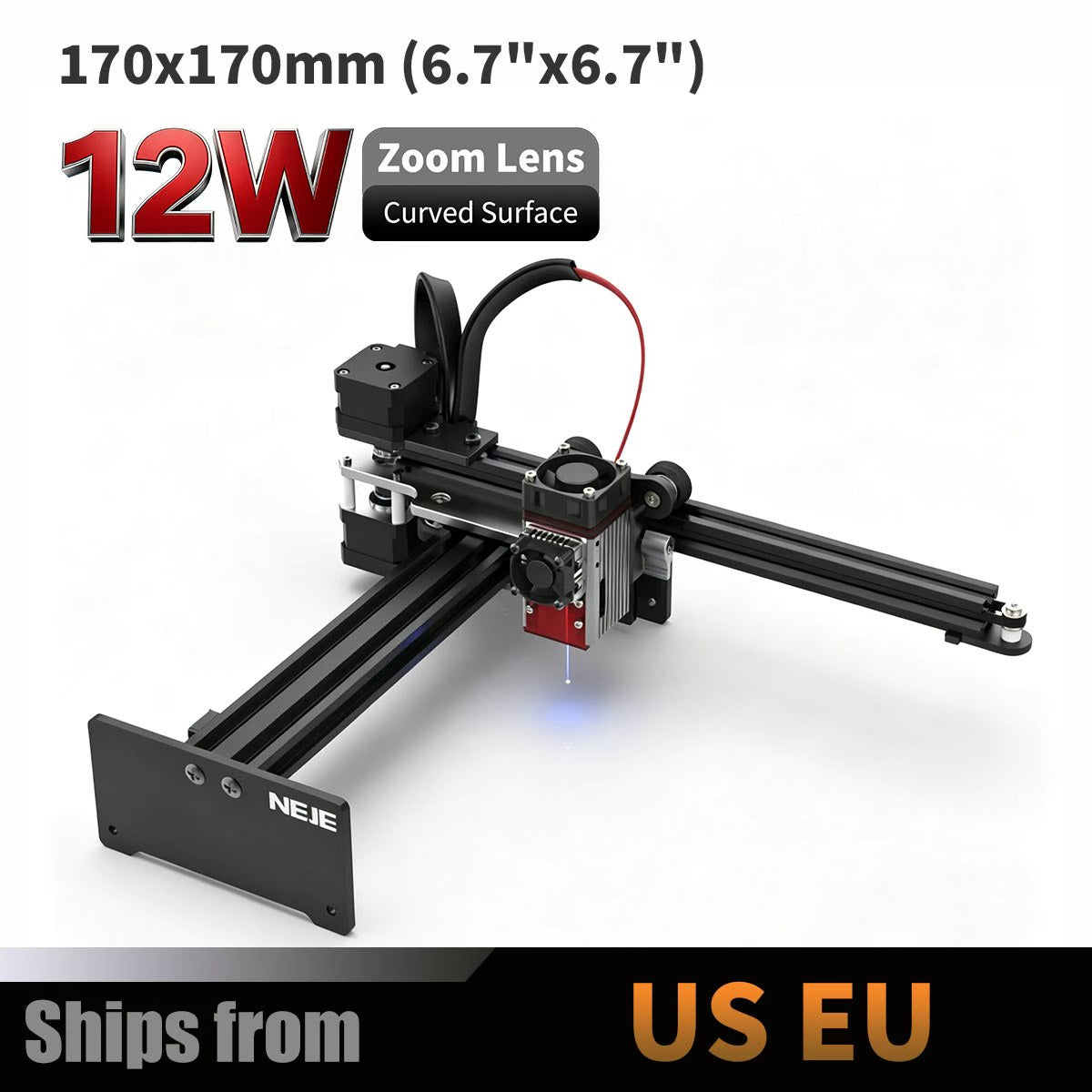

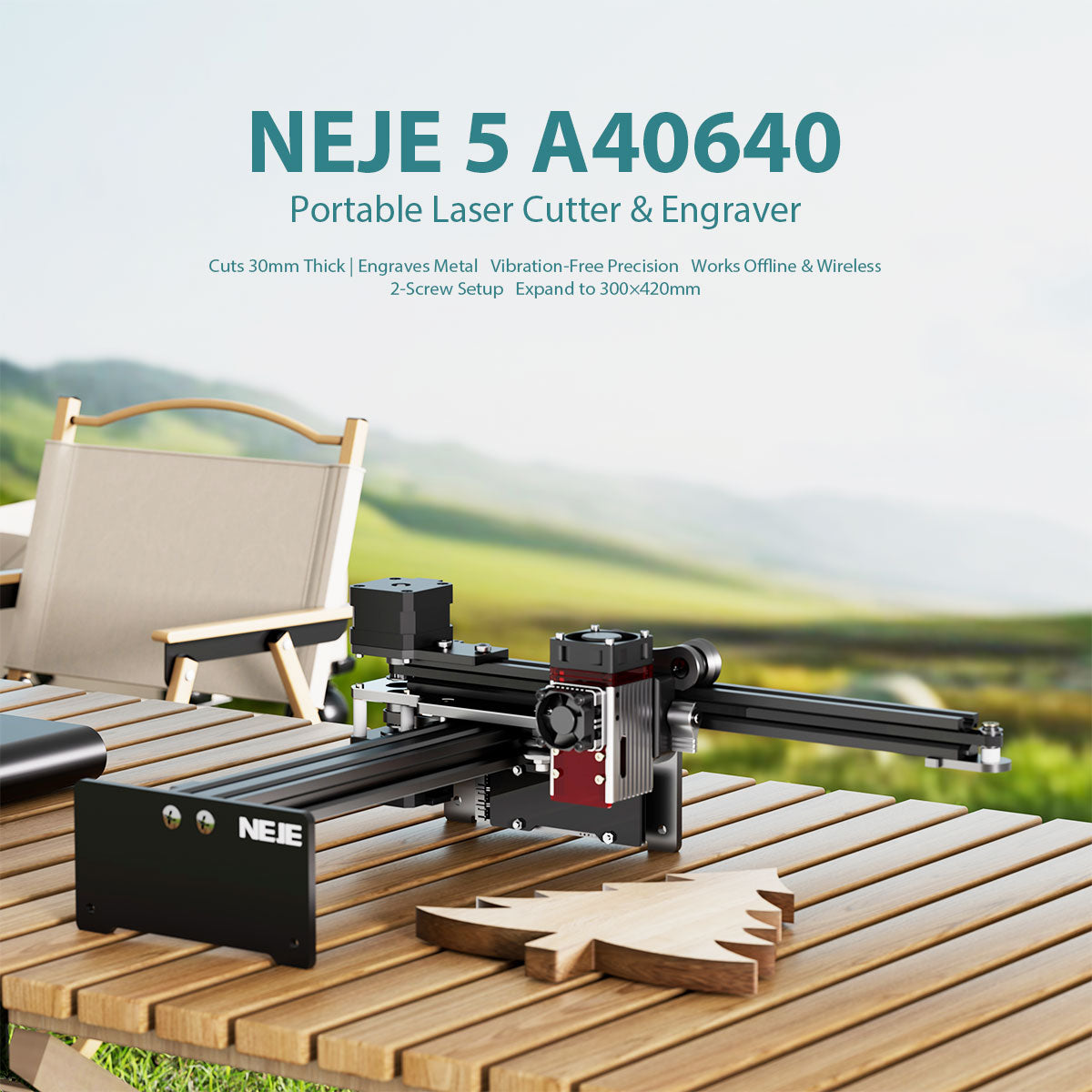

NEJE 5 Portable Laser Cutter & Engraver
Ships from China: Delivers to Australia, Canada, New Zealand, Singapore, South Korea, Japan, South Africa, Mexico, and other countries/regions.
Ships from Europe: Delivers to European Union Member States, Switzerland, Norway, Albania, Iceland, Serbia, Ukraine, and Turkey, United Kingdom.
Ships from US: Delivers to the United States (excluding Alaska, Guam, Hawaii, Puerto Rico, US Armed Forces Americas, US Armed Forces Europe, and US Armed Forces Pacific).
Features
Easy Installation
- Only 2 screws required for quick assembly.
Safe Operation -
- Built-in MEMS vibration protection: automatically stops working upon excessive vibration.
- Light-blocking shield blocks over 95% of light for safe use.
Wireless Control
- Fully wireless operation via Windows software and mobile APP, enabling efficient offline control—perfect for outdoor and garden use.
Powerful Performance
- Cuts up to 20mm wood, 30mm acrylic, and engraves metals with high precision.
Professional-Grade Features
- NEJE software supports fast operation, vector files, images, and multiple work modes simultaneously.
- Advanced wireless and offline functionality for third-party software like LaserGRBL and LightBurn, ensuring seamless workflow.
Specification
| Product Model | Device Size |
|---|---|
| NEJE 5 A40640 | 390*320*210mm (XYZ) |
| Engraving Size | Maximum Speed |
| 170*180mm | 300mm/s |
| Limit Button | Repetition Accuracy |
| None, Contactless Reset Technology | 0.1mm |
| Laser Wavelength | Laser Optic Output Power |
| 455±5nm | 12W |
| Spot Size | Transmission Method |
| 0.04*0.06mm | BLE, USB |
| Support Systems | MEMS Vibration Protection |
| IOS, Android, Windows, Mac | Three-level adjustable |
| Memory | Machine Power Supply |
| 256MB | Input 100-240V AC, 50/60HZ, output 12V 4A |
| Quality Certification | Warranty |
| CE, FCC, RoHS, FDA, PSE | 2 Year |
| Cutting Materials | Software & Service |
| Wood & plywood < 20 mm, Black Acrylic < 30mm, MDF < 10 mm；Leather < 4 mm, PU/PVC Leather < 4 mm；Corrugated cardboard < 18 mm, Hard cardboard 3 mm, Scratch paper Weeding invitation paper, Colored A4 paper, Kraft paper; Vinyl, Non-woven, ABS sheet < 2 mm - Dark, color PVC sheet 2 mm - Dark color; Cotton, Linen, Velvet, Canvas, Fabric polyester, Fabric synthetics; | LaserGRBL, LightBurn, NEJE Win Software (Professional multi-layer control software, featuring NEJE "REC" function and NEJE "Bridge" function)NEJE App (Android app, Android phone-to-PC wireless transfer tool; iPhone and Mac APP)NEJE Cloud (Content service platform)NEJE OTA (Over-the-air software and firmware update service) |
| Engraving Materials | Motion System |
| Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate; | X-axis: 42mm × 42mm × 30mm stepper motor, Y-axis: Dual 42mm × 42mm × 34mm stepper motor, Full 20-tooth 2GT timing pulleys; |
