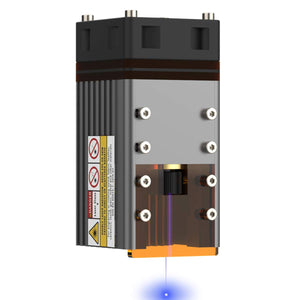

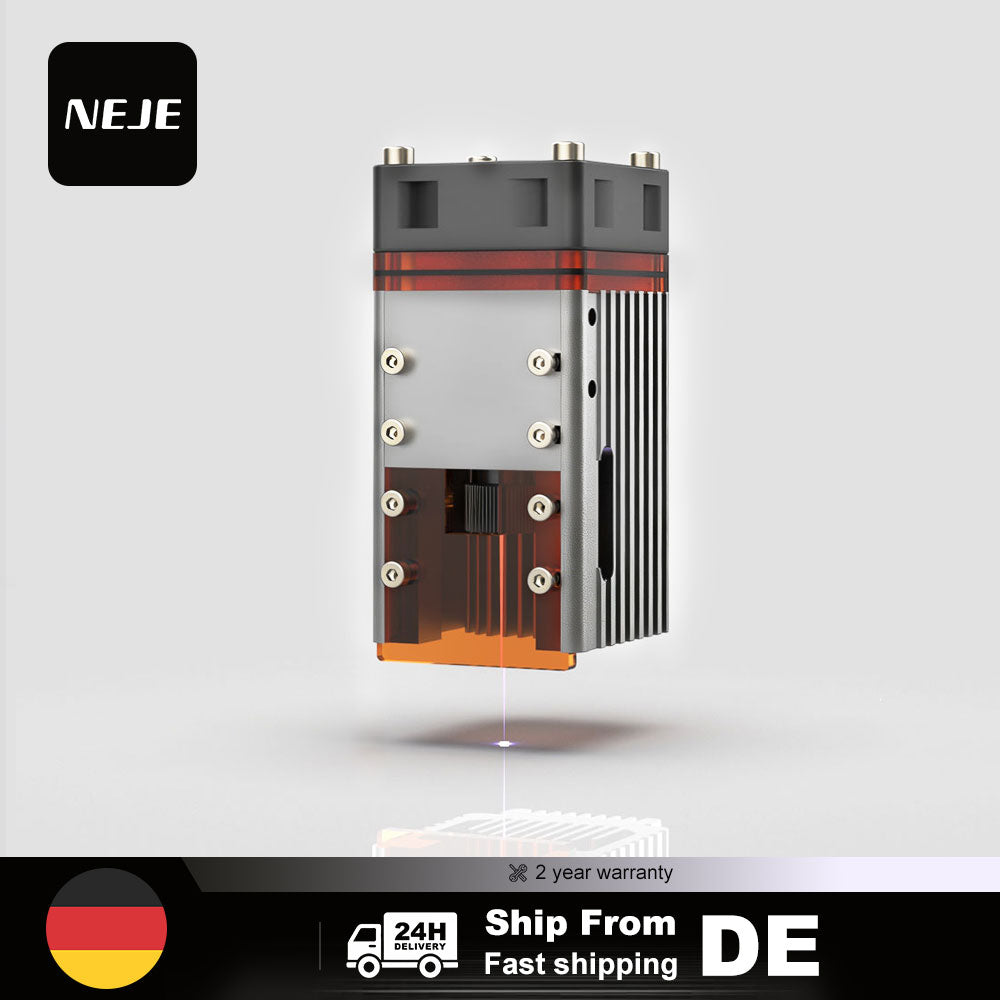

NEJE A40630 6W Square Beam Laser Module Kits

  • $69.00
    Unit price per
Shipping calculated at checkout.

Only 15 left!

Description

The A40630 module combination is a unit that possesses excellent capabilities in both fine engraving details and comprehensive cutting. It utilizes a top-tier Nichia module, offering superior light output efficiency and lifespan compared to similar products. With a silent design, the fan's operation is intelligently linked to the signal and module temperature for an enhanced user experience. It comes with a built-in air assistance feature and is equipped with a maintenance-free needle-style high-pressure gas assistance nozzle. The static electricity protection level exceeds EU standards by more than 10 times. NEJE offers a 2-year free warranty service, and it is compatible with all laser engraving machine models on the market and a very wide range of materials.

Features

Silent design with intelligent fan speed adjustment based on PWM signals and temperature feedback for automatic control.

Outstanding comprehensive performance, built-in fast-axis compression technology for a smaller focus spot and longer depth of field, making the engraving and cutting capabilities more versatile.

Extra-long service life with a unique top-tier Nichia light module, supported by an efficient cooling system that can handle continuous operation at 100% power, and NEJE offers 2 years of free after-sales service.

Built-in air assistance integrates the cooling system and smoke exhaust into one unit, eliminating the need for additional gas assistance to protect the lens.

Built-in maintenance-free high-pressure needle tube gas assistance improves the cutting edge quality with high-efficiency gas assistance.

Equipped with a light shield that aids in focusing and blocks most of the light to enhance the operational experience.

Ultra-high resistance to electrostatic damage, exceeding EU standards by 10 times, making it safer and more reliable.

Widely compatible with gas laser equipment, featuring interface adapter modules for broad adaptability with other brand models.

Specification

weight: 209g
Wavelength: 450nm
Optical Output power: >6W
Min focus spot size: 0.04*0.04mm
Optical materials: Top-grade Nichia diode
Input: 12V - GND temperature_feedback
Fan material: high speed double ball fan
Fan speed smart control: build in
Fan automatically stop: build in
(Automatically controls fan speed according to temperature to reduce noise.)
Laser Class: Class 4
Antistatic: Yes
Continuously working: Unlimited
Warranty: 2 Years(20000h)

Acrylic_1.gif__PID:bb87ccf5-94f7-44e9-b9ff-145eb7d91ad5

3mm black acrylic,120mm/min,1 pass

10mm_.gif__PID:3176ed12-38ce-4867-b7a1-c300c893bb87

10mm pinewood,80mm/min,2 passes

3mmMdf_.gif__PID:a83ce316-ba9d-4585-9897-f62fbba20595

3mm mdf,100mm/min,four passes

Glass_2.gif__PID:ee0556a4-ad93-4c64-8364-73fbe6d65664

Glass Engraving,4200mm/min

BD.gif__PID:8d4c4022-e379-487f-9113-f4ba29011ff3

slate engraving,4000mm/min

BXG.gif__PID:1ff3042e-2748-4069-8aae-a61bf2a1e123

stainless steel engraving,50mm/min
