The Silent Killer of Laser Modules: Why Your Cooling Fan Needs More Attention Than Your Lens
Posted by WuDav on
Recently, while investigating a case of sudden power loss on an E80 module, we discovered a critical detail hidden in plain sight: the cooling fan wasn't spinning.
Most users obsess over cleaning the protective lens. But the fan? It's often ignored until it's too late.
The Problem: Oil, Dust, and Heat Death

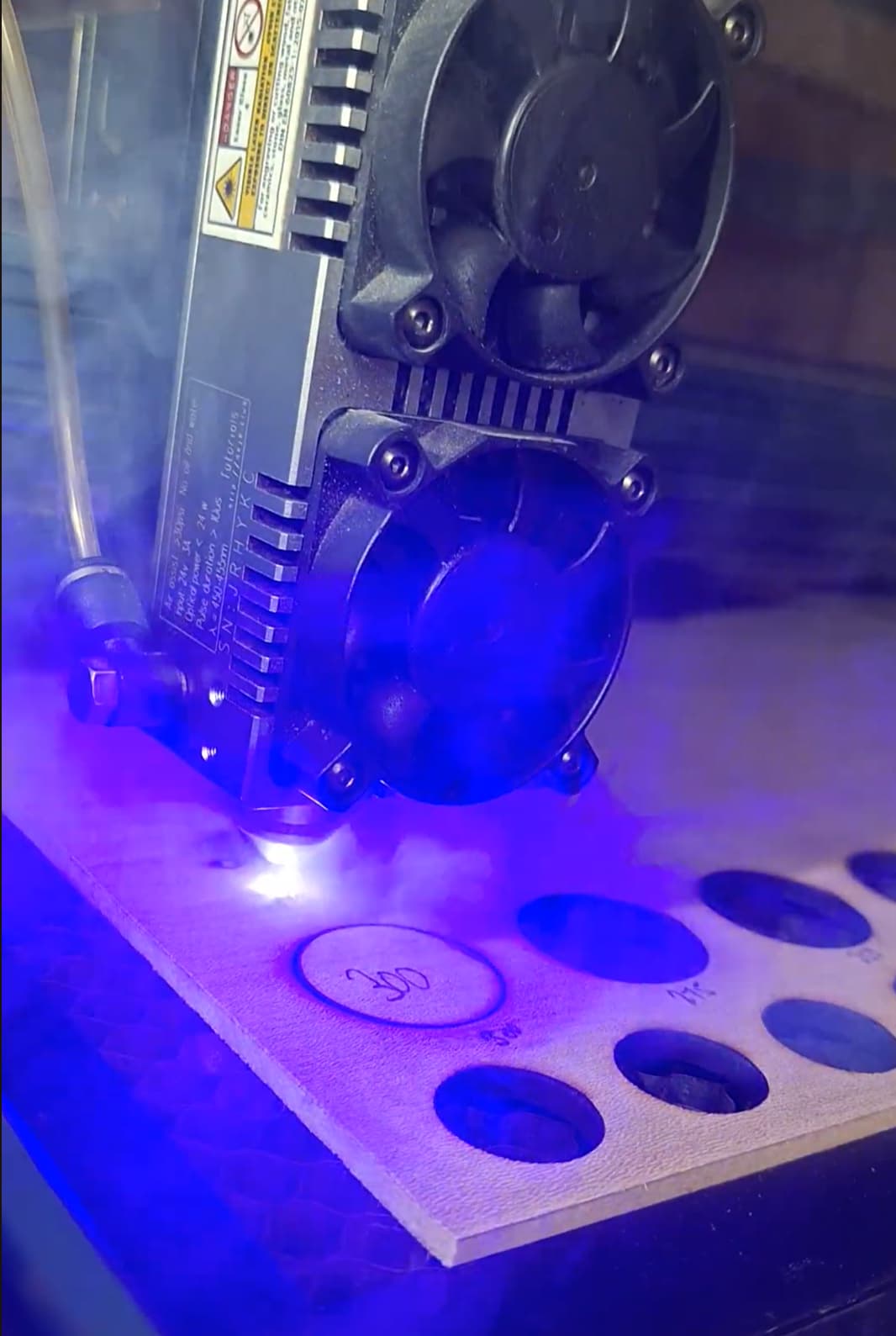

The NEJE E80 is a powerhouse. With a 90x90μm spot size, it packs immense energy into a tiny area, generating significant heat. The cooling fan isn't just a accessory; it's the heart of the module's survival system.
In workshops, especially when cutting MDF or oily woods, microscopic particles and oil mist are everywhere. These contaminants are sucked into the fan. Over weeks and months, they solidify inside the bearings. The fan slows down, stops, and suddenly, your $400 module is cooking itself.
The Solution: Smart Firmware & Simple Maintenance
To protect your investment, NEJE released a critical firmware update in March 2026.
This update allows the module to communicate real-time temperature data to the GRBL controller. If the temperature exceeds safe limits, the machine will automatically pause. It's not a bug; it's a safety shield designed to prevent a total burnout.
How to Protect Your Machine:
-
Check Weekly: Look at your fan while cutting. If it's wobbling or silent, stop immediately.
-
Clean Monthly: Use isopropyl alcohol to wipe the blades and lubricate the bearing.
-
Replace if Needed: The E80 features an open-frame design. Replacing the fan is a 5-minute job. Don't risk the module for a $5 part.
Final Thought
We build NEJE machines to last (like the user who still runs a 2010 model!). Don't let a clogged fan cut your journey short. Keep it cool, keep it clean.
