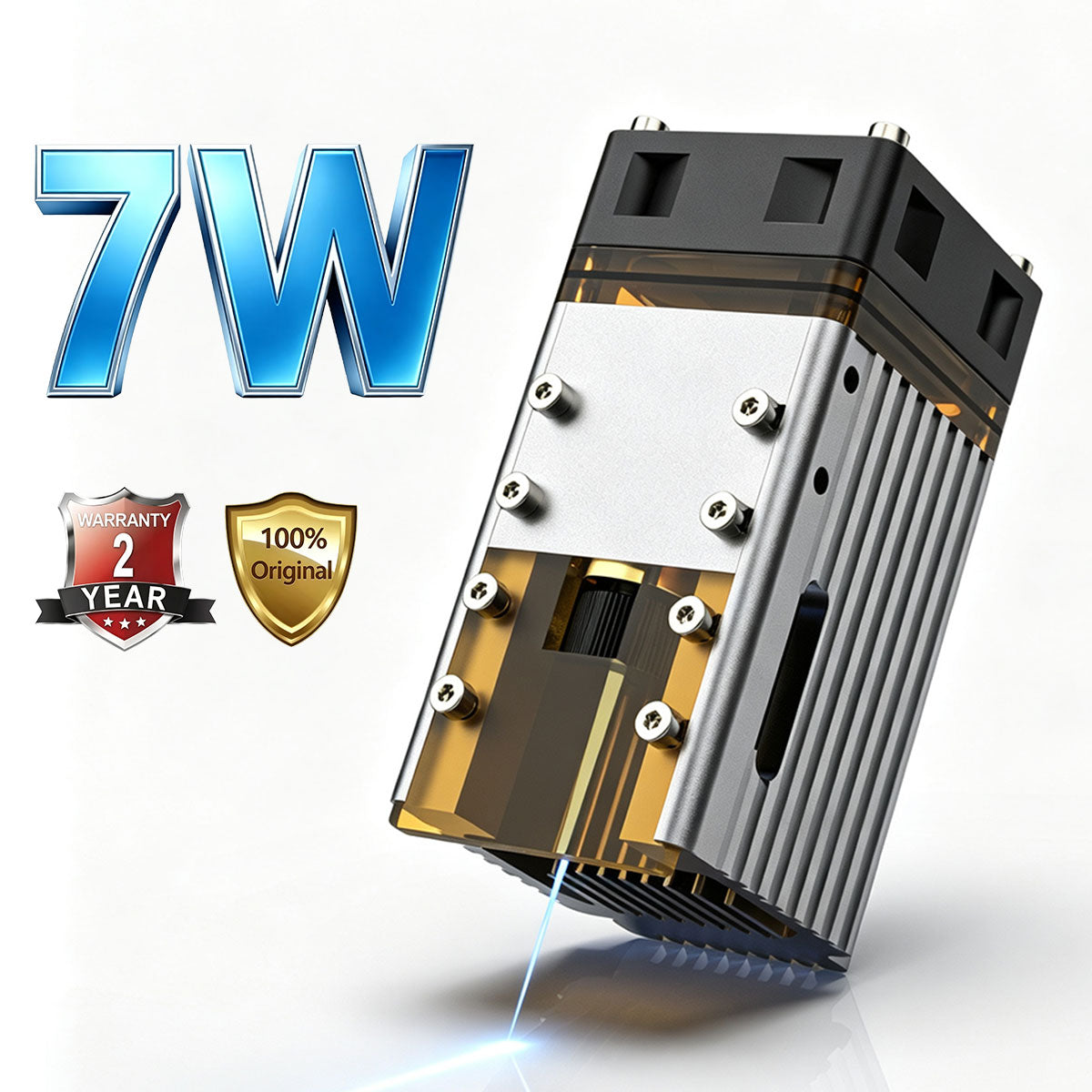

NEJE A40630 Diode Laser Module - 7W - 12V
The best-performing 5W+ class laser module, featuring built-in fiber compression technology and premium-grade diodes. It delivers 30% higher optical efficiency than standard 5W modules, achieving an actual output power of 7W. With a smaller focal spot, fast deep engraving capability, and 635DPI image resolution, it can directly engrave mirror-finish stainless steel. It also offers an extended depth of focus, enabling cutting up to 15mm balsa wood and clean one-pass cuts through 4mm basswood.
Key Features:
1. Built-in fiber optic optics technology enhances focus and depth-of-field quality, optimizing 7W optical output. It supports fine-depth wood engraving, image engraving, ceramics, glass, and direct engraving on stainless steel.
2. Equipped with NEJE’s intelligent smart driver, which automatically detects module temperature and working signals, provides real-time thermal feedback, and dynamically adjusts fan speed — delivering a quiet, safe, and comfortable user experience.
3. Variable focal design adapts better to different material properties and working scenarios.
4. Integrated cooling and smoke extraction design eliminates the need for additional air assist.
5. Compatible with needle-nozzle air assist installation for specialized processing needs.
6. Developed with NEJE’s ultra-strong anti-static protection, backed by 15 years of optical R&D and manufacturing expertise, and a 2-year warranty.
Specification:
| Radiator Size | Weight |
|---|---|
| 40 x 50 x 60 mm | 204g |
| Fan | Fan Quiet Tech |
| 40x40x15mm, 2pin 12V 10600RPM | Drive the built-in control ic, judge the working state and adjust the fan work. |
| Interface | Drive Design |
| PH2.0 4Pin, 12V - GND - PWM - Temperature feedback | Temperature-controlled variable fan speed |
| Optical Power | Wavelength |
| Pulse Power: 7W, Continuous Power: 6-6.5W | 455±5nm |
| Laser Class | Number of Diodes |
| Class 4 | 1 |
| Light Source | Min Focus Spot |
| 1 X LD + FAC Tech + C-Lens | 0.04×0.04mm |
| PWM Input | Brushed Stainless Steel Carving |
| VPP(3.3-12V), Recomend 1KHz | Yes |
| Max Cutting & Carving Depth | Mirror Stainless Steel Carving |
| 15mm | Yes |
3mm black acrylic,120mm/min,1 pass
10mm pinewood,80mm/min,2 passes
3mm mdf,100mm/min,four passes
Glass Engraving,4200mm/min
slate engraving,4000mm/min
stainless steel engraving,50mm/min
