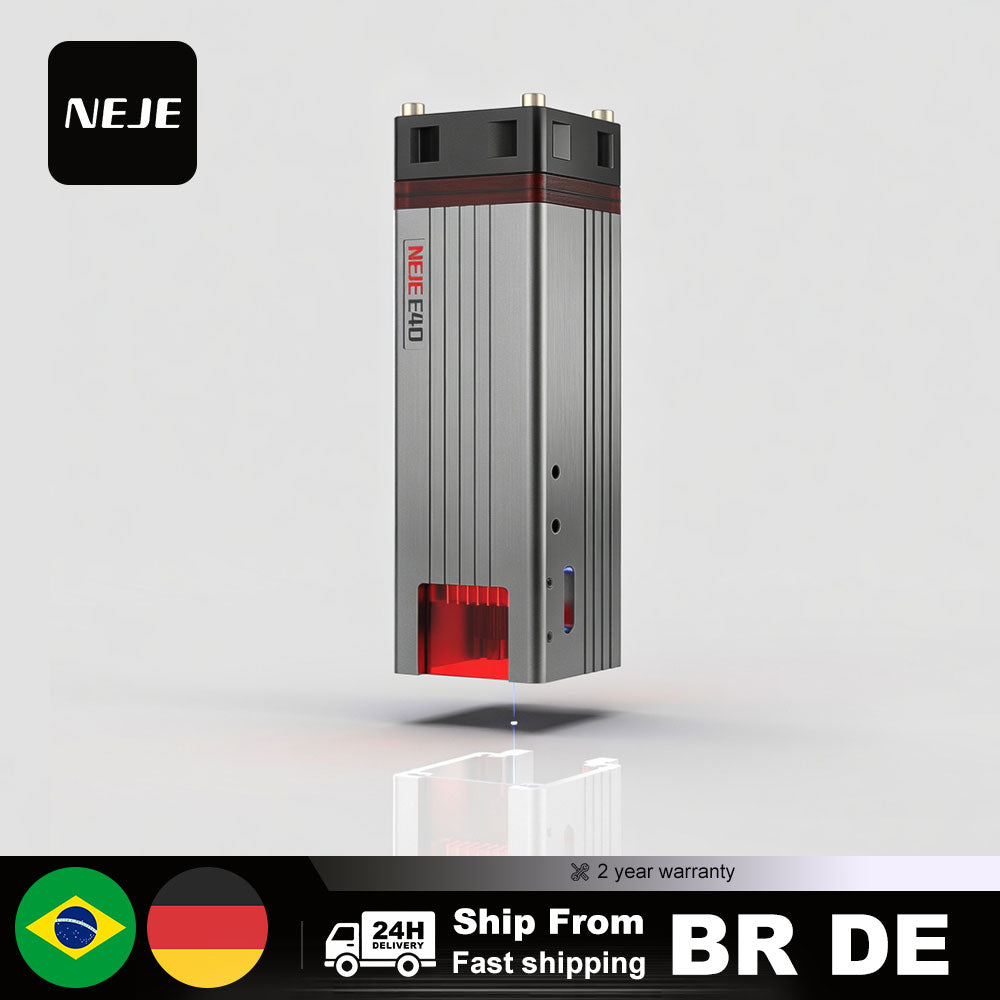

NEJE E40 12W 450nm High Definition Fixed-Focus Laser Module - Direct use, no air pump required

  • $139.00
    Unit price per
Shipping calculated at checkout.

Only 12 left!


E40it.png__PID:5b17be53-2bb0-4249-851c-ec76e61cd34f

Interface

12V: Power positive .

GND: Power ground or power negative.

TTL/PWM: TTL = PWM, input 3.3V~12V to turn on laser module, conect to GND to turn off laser module.

Temperature: do not connect, please ignore.

Connect 12V and GND pin to 12V power, ensure the power adapter is sufficient, >3A is recommended.

Connect TTL/PWM pin to your control board PWM output pin.

COMPATIBILITY

Compatible with NEJE 3 Pro, NEJE Master 2, NEJE Master 2s, NEJE 3, NEJE Max 4, NEJE 3 Max V2, Other Brand Laser Engraver, CNC Router, 3D Printers, DIY CNC Machine, Other CNC Machine, etc

 How to Make Laser Module Work with Your Control Board. tutorial

NEJE E40 Laser Module

Industry-leading performance 10W+ Watt output module
Direct cutting, clean edges, no need for air assistance, built-in lens protection

__1.gif__PID:e4f34786-8e7f-496c-b755-dfa4cd643510

2.17mm Leather,200mm/min,1 Pass

Acrylic_4.gif__PID:47868e7f-296c-4755-9fa4-cd643510cd89

10mm Black Acrylic,80mm/min,3 Passes

e40metal.gif__PID:dfca2f78-8b12-40f5-80c4-49aad61e9151

0.07mm stainless Steel,200mm/min,1 Pass

E40mdf.gif__PID:847ed371-4415-4209-ba03-1d4588ebc7ac

3mm MDF,300mm/min,1 Pass

E40ply.gif__PID:1d4588eb-c7ac-4d5c-acd3-1a95094200ec

3mm Plywood,350mm/min,1 Pass

E40xq.gif__PID:01a268c6-5830-49a7-8228-ec3cb836dd06

0.05mm Ultra Small Incision

Andonized__13.gif__PID:6088bd7d-ca26-4caf-963e-360c39567b8d

Black Andonized Aluminum engraving speed:8000mm/min

Specification

E40 Laser Module
Focus: 0.03x0.04mm (10000W/m²)
Focus method: fixed focus( 5mm from the radiator )
Optical power: Pulse 12W+, CW 11W
Compatible: compatible with any 24V or 12V equipment, independent power supply, controlled by ttl 2pin signal of the equipment
Wavelength: 450nm Weight: 280g
Module Size: 40x48x130 mm
Input: DC 12V 4A
Interface: 4pin PH2.0 + ( 2pin DC12v extra power )
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc...
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials.Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Protective window lens: Yes ( withstand 1000℃ )
Original registered brand: Yes
