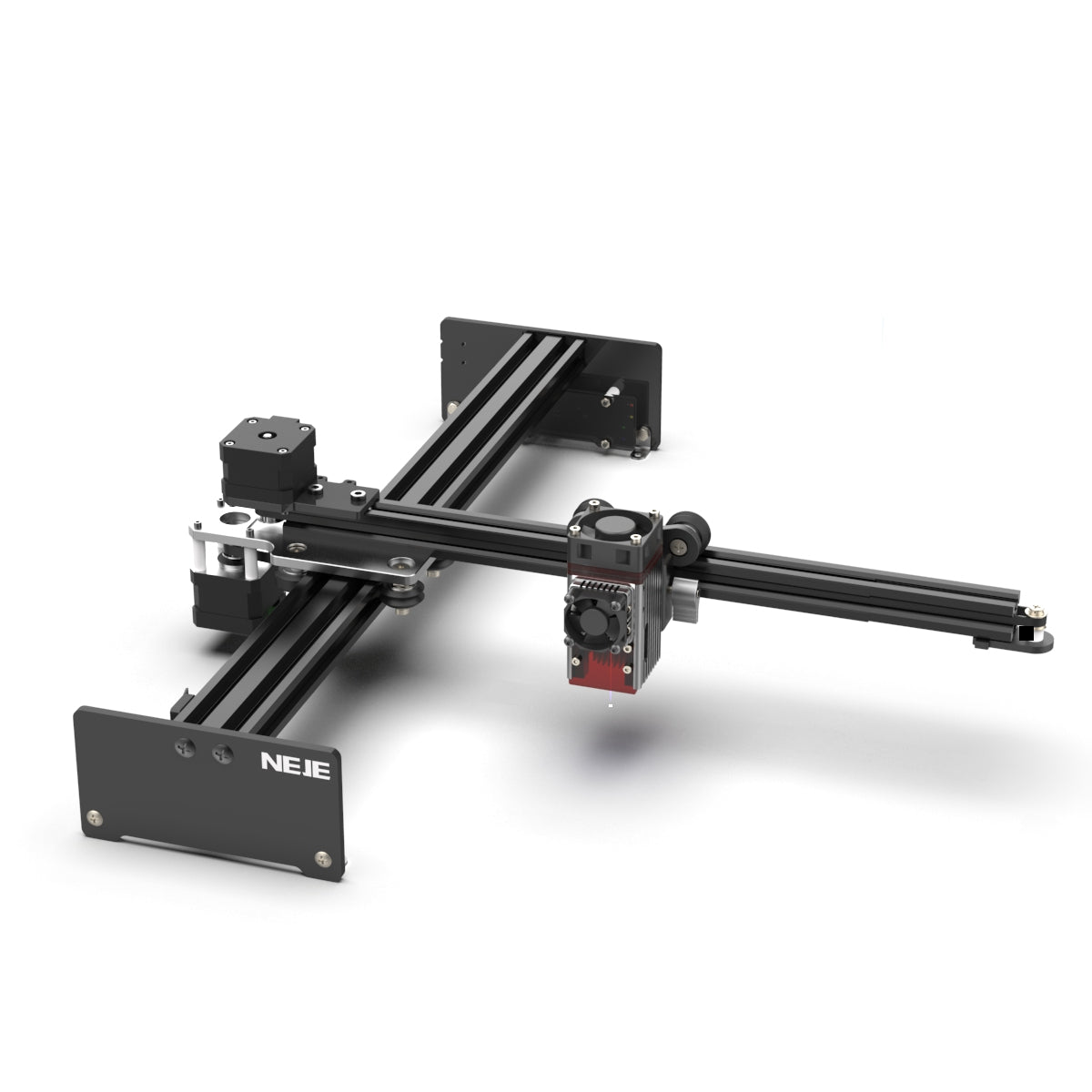

NEJE 5 Plus: Portable Laser Engraver with A40640 Laser Module - 300x420mm
Featuring a flexible A3-sized working area to handle various shapes and materials for both engraving and cutting. Equipped with the classic NEJE A40640 module, it delivers high-quality stainless steel engraving and cuts materials up to 30mm thick. With three different focal lengths, it easily adapts to uneven surfaces for exquisite engraving results. Control via smartphone APP, supports standalone offline operation, and compatible with professional software—meeting both portability needs and intricate vector processing demands.
Featurs:
Ultimate All-Rounder Laser Module – Exceptional uneven surface adaptability for high-quality stainless steel engraving, deep wood carving, wood cutting, stone, painted metal, select plastics, leather, bamboo, and more.
Spacious 300×420mm (A3) Workspace – Open-format design accommodates diverse materials; perfect for engraving photos, signs, pens, notebooks, tableware, and cutting models or creative projects.

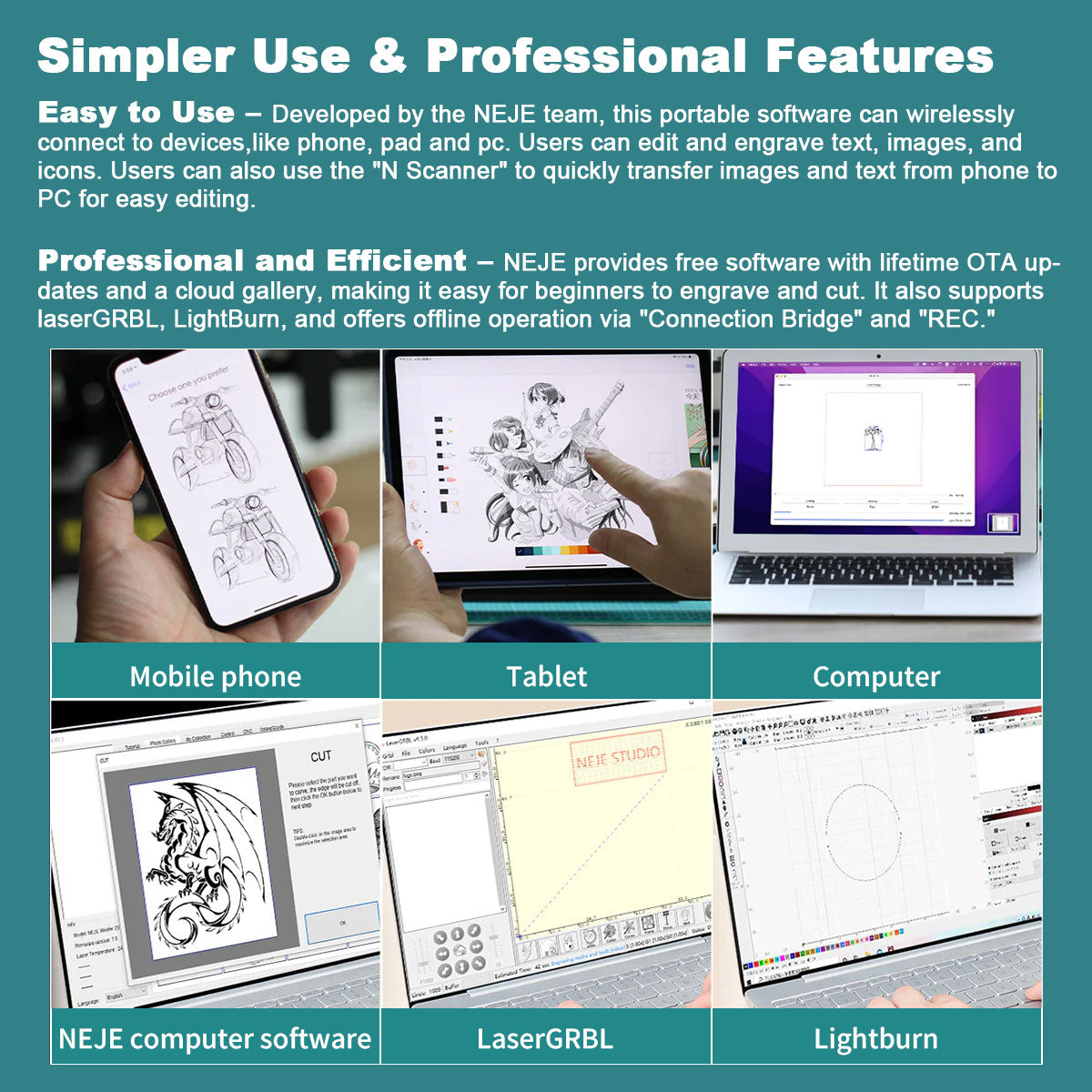

Flexible Operation – Directly engrave images/text via smartphone app, or wirelessly connect to a computer for intuitive carving/cutting.
Advanced Professional Functionality – Supports Z-axis, M7/M8 Door, and other professional accessories; compatible with LightBurn, LaserGRBL, and third-party software (e.g., REC, Bridge) for enhanced capabilities.
2-Screw Quick Setup & Easy Storage – Install in just 2 screws; compact and convenient for storage when unused.

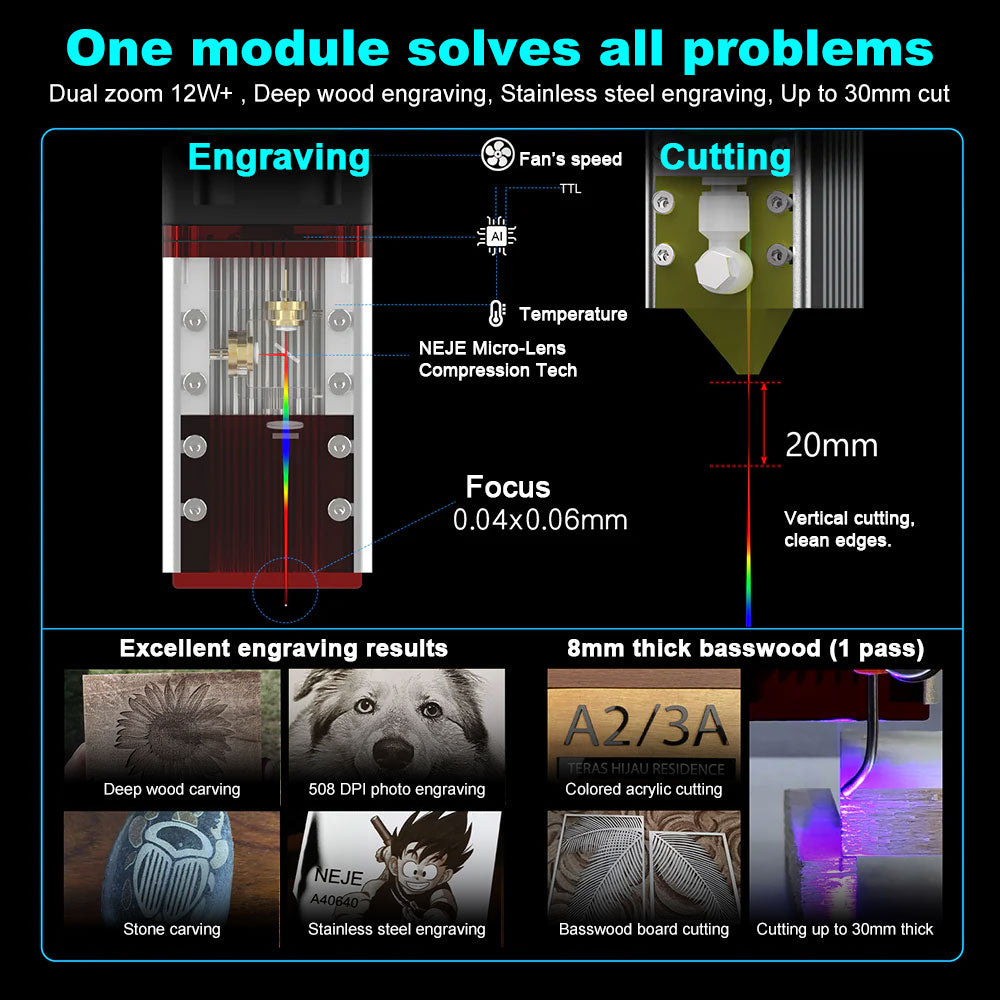

Detail of A40640 Laser Module
Cutting-Edge Design & Performance
Pioneering High-Power Design: Continues the legacy of the first high-power laser diode technology, setting industry standards.
Ultra-Light & Efficient: Lightweight structure with optimized heat dissipation for sustained performance and easy maintenance.
Blazing-Fast Scanning: High-speed operation for rapid engraving and cutting tasks.
Intelligent Air Management
Direct Smoke Exhaust System: Built-in air duct design eliminates the need for external air assistance, protecting the lens from smoke damage.
Overheat Protection: Capable of continuous operation without thermal throttling, ensuring reliable performance.
Exceptional Engraving & Cutting Capabilities
Dual Fiber Zoom Design:
Short Focal End (12W+ Peak Power):
Best-in-class engraving for 10W+ modules, achieving 500 DPI resolution and high clarity for direct metal engraving.
Long Focal End:
Adapts to uneven surfaces with strong versatility, supporting 20mm wood cutting and other materials.
Flexible Air Assistance Options
Expandable Needle Tube System:
Compatible with various air sources (no strict quality requirements).
Can be paired with a closed air assistance device for enhanced performance.
3D-Printed Nozzle:
Lightweight design that improves cutting performance and quality, especially for hard materials.
Industrial-Grade Reliability
Peak Power Output: 12W+ ensures powerful and efficient material processing.
Adaptive Focal Lengths: Dual FAC design optimizes performance for diverse materials and applications.
| Laser Wavelength | Spot Size |
|---|---|
| 455±5nm | 40 µm*60 µm |
| Laser Optic Output Power | Interface |
| 12W | 12V+, -, GND, Temperature Feedback (40W+ power supply required) |
| Engraving Materials | Cutting Materials |
| Wood,Rubber, hardwood, bamboo, cardboard, painted metal, fabric, PU/PVC Leather, stainless steel, selected plastics, leather, PCB, aluminum oxide, electroplated layers, glass, ceramics, slate, etc. | Wood & plywood < 20 mm(30psi+ air), MDF < 6 mm；Leather < 3 mm, PU/PVC Leather < 3 mm；Corrugated cardboard < 8 mm, Hard cardboard 3 mm, Scratch paper Weeding invitation paper, Colored A4 paper, Kraft paper; Vinyl, Non-woven, ABS sheet < 2 mm - Dark, color PVC sheet 2 mm - Dark color; Cotton, Linen, Velvet, Canvas, Fabric polyester, Fabric synthetics; |
| Weight | Warranty |
| 200g | 2 years |
