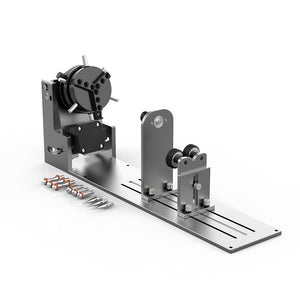

NEJE R6 9-in-1 Micron-Level Rotary Attachment — A-Axis Quick Operation Chuck / Roller Rotary
Ships from Europe: Delivers to European Union Member States, Switzerland, Norway, Albania, Iceland, Serbia, Ukraine, and Turkey.
Ships from US: Delivers to the United States (excluding Alaska, Guam, Hawaii, Puerto Rico, US Armed Forces Americas, US Armed Forces Europe, and US Armed Forces Pacific).
Ships from UK: Delivers to the United Kingdom.
Ships from AU: Delivers to Australia.
Ships from China: Delivers to Canada, New Zealand, Singapore, South Korea, Japan, South Africa, Mexico, and other countries/regions.
Some expansion accessories are stocked in corresponding overseas warehouses. Please select the appropriate shipping origin to ensure timely delivery.
Features
- Precision Cylindrical Engraving - 1:5 scaling ratio supports objects up to 200mm diameter, delivering exceptional engraving quality for cylindrical items like cups.
- One-Hand Operation Convenience - Innovative design allows chuck operation without tools - no wrench needed for quick adjustments.
- Wide-Range Engraving Angle - 90° rotatable design accommodates diverse objects, expanding your creative possibilities.
- Durable Construction - Premium stainless steel and steel construction with precision engineering ensures long-lasting wear resistance.
- Seamless Device Compatibility - Direct A-axis compatibility with NEJE devices for coordinated operation, plus stepper motor interfaces that work with other brands.
Specification
| Product Dimensions | Weight |
|---|---|
| Length (L) / Width (W) / Height (H) = 395 mm / 84 mm / 136 mm | 2600g |
| Packaging Dimensions | Maximum Clamping Radius |
| 445 mm × 190 mm × 134 mm | R = 100 mm |
| Material | Package Contents |
| Frame structure (anodized aluminum), spindle + lever (stainless steel), chuck (wear-resistant precision CNC steel with blackening process), collet (aluminum alloy + anti-slip and scratch-resistant silicone ring) | Device × 1, Chuck (3 types) × 3, 1.5 m shielded cable (compatible with all current NEJE devices, including NEJE Max 4 series, NEJE 5 series, NEJE Max 5C, etc.) × 1, 1.5 m 4pin motor cable (for compatibility with other devices) × 1, Replacement silicone ring × 1, Hex key and matching screws × 1, Spare spring × 1 |
