NEJE A40640 Laser engraver / cutter Module ktis - FAC tech - 2 x laser beam - 15W output
A40640 Laser Module Feature
- Designed for Laser Engraver, 3D printer, CNC mill, Arduino project.

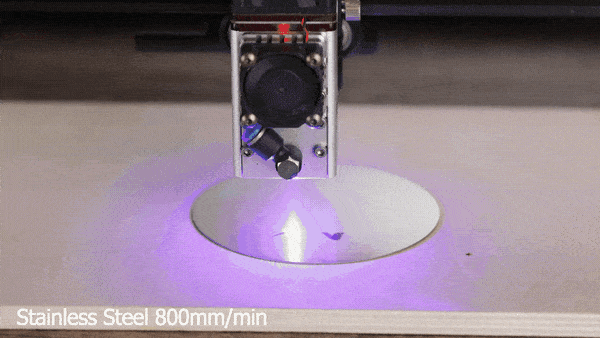

- 15W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.
- More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
- More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.
- Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module.
- slidable mounting fixture is provided for easy adjustment of focus.
Model：NEJE A40640 Module
Heatsink Material：Aircraft Aluminum + Brass Shell
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Optical power output：15W
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on the wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the moving inertia, the better the performance )
Life Time：10000-20,000 hours
Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES
Note(Please pay attention)
- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
- Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
- Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
- The warranty period of the laser module is one year. If you have any quality problems (Except individual situations like using the laser module more than 30 minutes per time and cause damage ), please feel free to ask our customer service for help.
- If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
- If you have any quality problem with the machine, please feel free to contact us. Many operative problems can be solved according to your video and problem description. Thank you in advance.
- This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machines.
- It can also be compatible with other CNC equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of PWM waveform control.
A40640 Laser Module Kits Package Included
- 1 x A40640 Laser Engraving Module
- 1 x Laser Module Sliding fixture
- 1 x 4 Pin Cable(1000mm)
- 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
- 1 x 2.5mm L-shaped wrench
- 1 x 5mm L-shaped wrench
