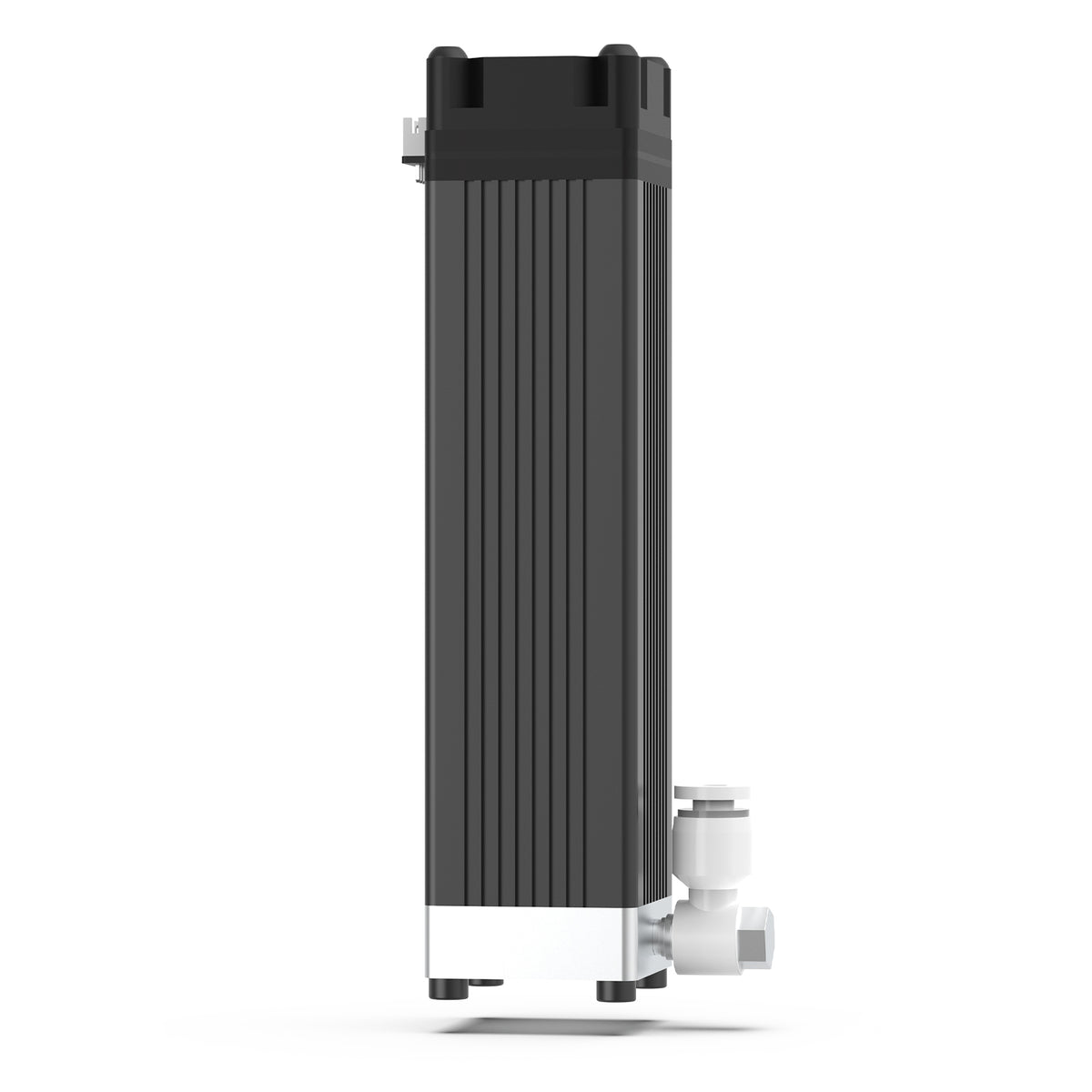

450nm 6W 12V Laser Module with Ultimate Focus for Metal Engraving and wood Carving - NEJE E30130- Need air assistance to protect the lens

  • $109.00
    Unit price per
Shipping calculated at checkout.

Only 0 left!

Description

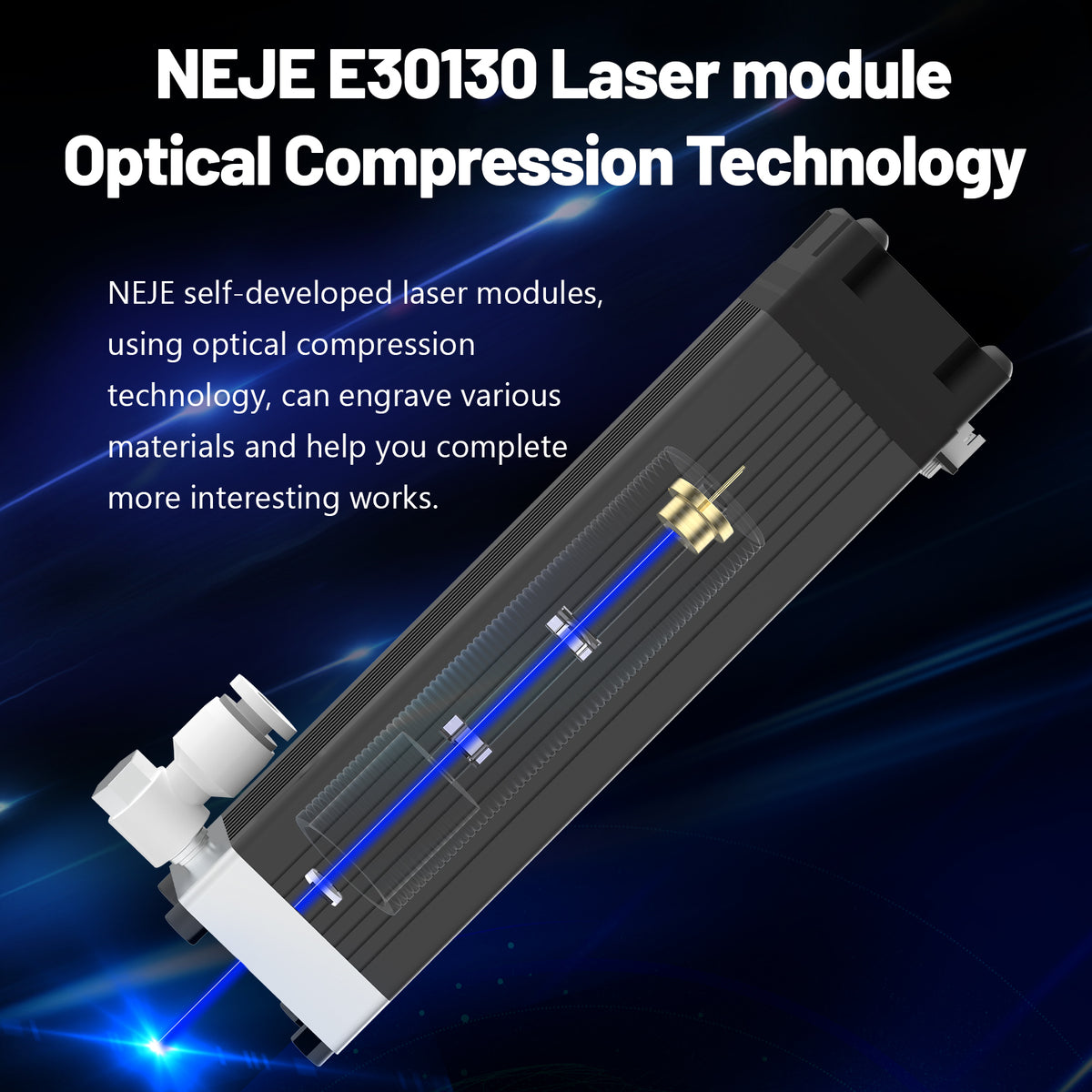

NEJE E30130 is a cutting module specially designed for high-precision and stable cutting. It adopts single beam optical compression technology to make X and Y have stable square characteristics in each focal length. 0.06x0.06mm focus and 20mm (lens to focus) fixed focal length, built-in high-pressure air auxiliary interface , can directly connect 4mm high-pressure pure air pump, 300mm/s directly and cleanly cut 3mm plywood, easy to focus, can adjust the focus through fixed thickness, it is a better choice for users who use the cutting function a lot, and for users with higher XY direction symmetry and cutting accuracy. Printing a 3D nozzle protection lens for engraving is also a good choice, E30130 can also directly engrave stainless steel, stone, hardwood and other materials. Of course, the cutting process that requires extremely high symmetry is the biggest feature of E30130.


SPECIFICATION

Module: NEJE E30130

Focus: 0.06x0.06mm

Focus method: fixed ( about 10mm from the bottom  )

Optical power: CW 5.5W+, Pulse 7.5W

Wavelength: 450nm

Weight: 204g

Module Size: 30x30x130 mm

Input: DC 12V 3A

Interface: 4pin PH2.0

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc...

Power Control: PWM Power Modulation

Fan: Double Ball High Life Fan

Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.

Surge Protection: Yes

Smart Feedback: Yes

Temperature Feedback: Yes

Temperature control: 45℃

air pump: 0.5-1.5mpa clean air

Air interface: 4mm pvc trachea

Original registered brand: Yes

Warranty: 2 years

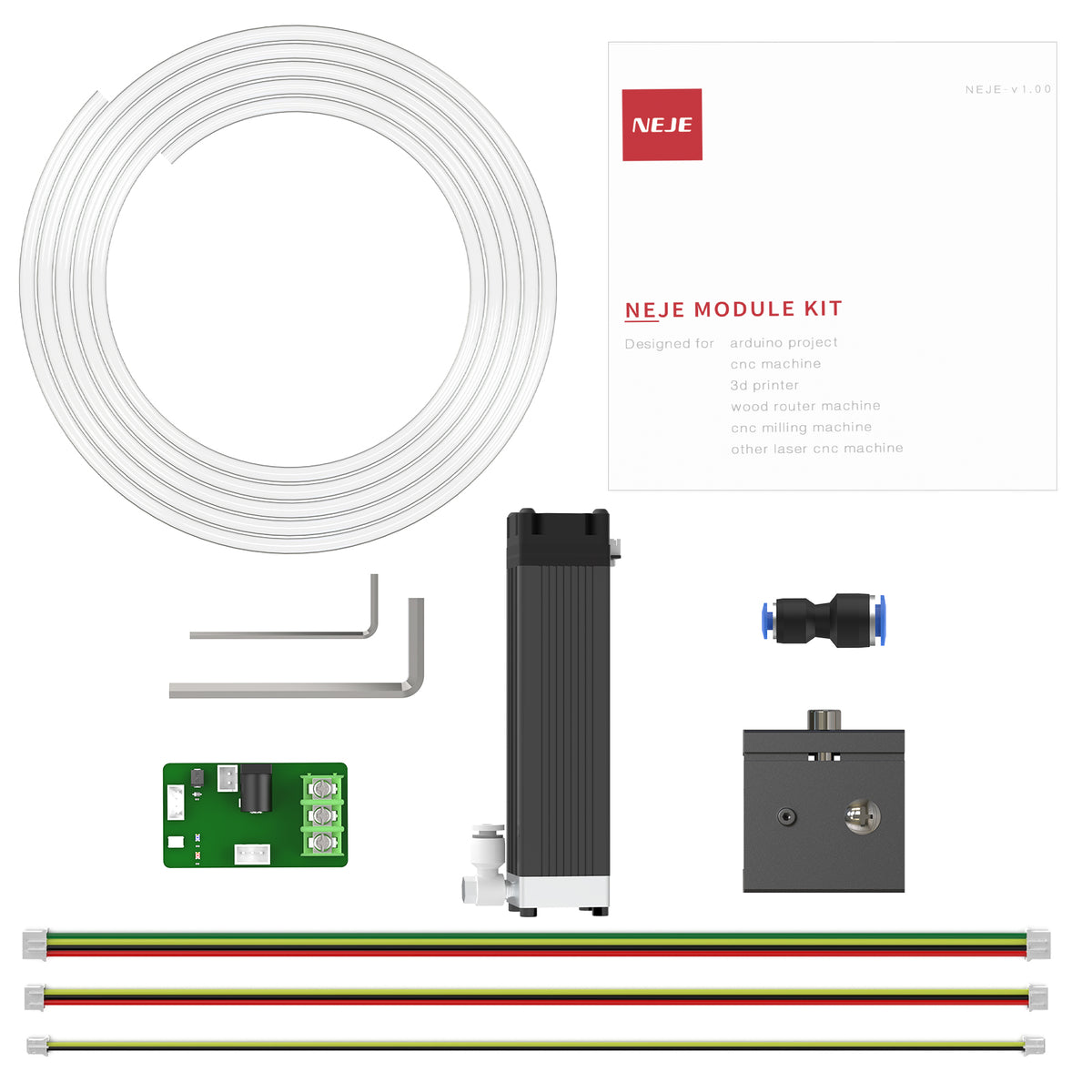

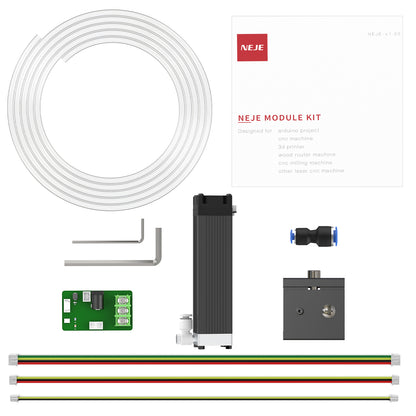

Package list:

  • 1 x NEJE E30130 laser module ( Built-in high pressure air nozzle )
  • 1 x Laser module height adjuster
  • 1 x 4 pin cable(30cm)
  • 1 x 2pin yellow and black signal line + 3pin input line
  • 1 x NEJE test / switch / interface adapter board
  • 1 x 2.5mm L-shaped wrench
  • 1 x 5mm L-shaped wrench
  • 1 x Tube (4mm x 2m)
  • 1 x connector ( M8 to M4 )

How to choose NEJE Laser Module


B30635 is a module specially designed for wood grayscale images and micro-engraving.

N30820 and N40630 have strong comprehensive capabilities, the optical power is 5.5 - 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc...These two modules are single-beam modules with comprehensive functions and high cost performance. They are the best choice for beginners. The difference between them is that N30820 can be used as air assist through a needle tube, not picky about the air pump. N40630 can install metal The air nozzle but air pump must be oil-free and water-free, so as to ensure that the lens is not damaged.

N30610, A40630, A30130 modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04x0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.

A40640 (Artist's Choice) is a classic creative master 2 beam laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04x0.06mm with 12+ optical power)of enables the A40640 to have the top engraving ability, There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.

F30130, E30130, E40, E80 are the series of modules specially designed by NEJE for long-time cutting. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam module, the spot shape is square, with 12W continuous power output capability, is a cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max machine. The new motherboard of NEJE 3 Max (v1.1.0 and above) supports 24V input. NEJE does not plan to configure a separate machine set for the E80 module. You can Purchase an E80 kit to upgrade your NEJE 3 Max.. In addition to E80 modules, F30130, E30130, E40 can also remove the air nozzle and directly use it for engraving without air assistance.
