Maximizing Your NEJE Max 4 V2: Extension Rod Setup and Benefits

Background

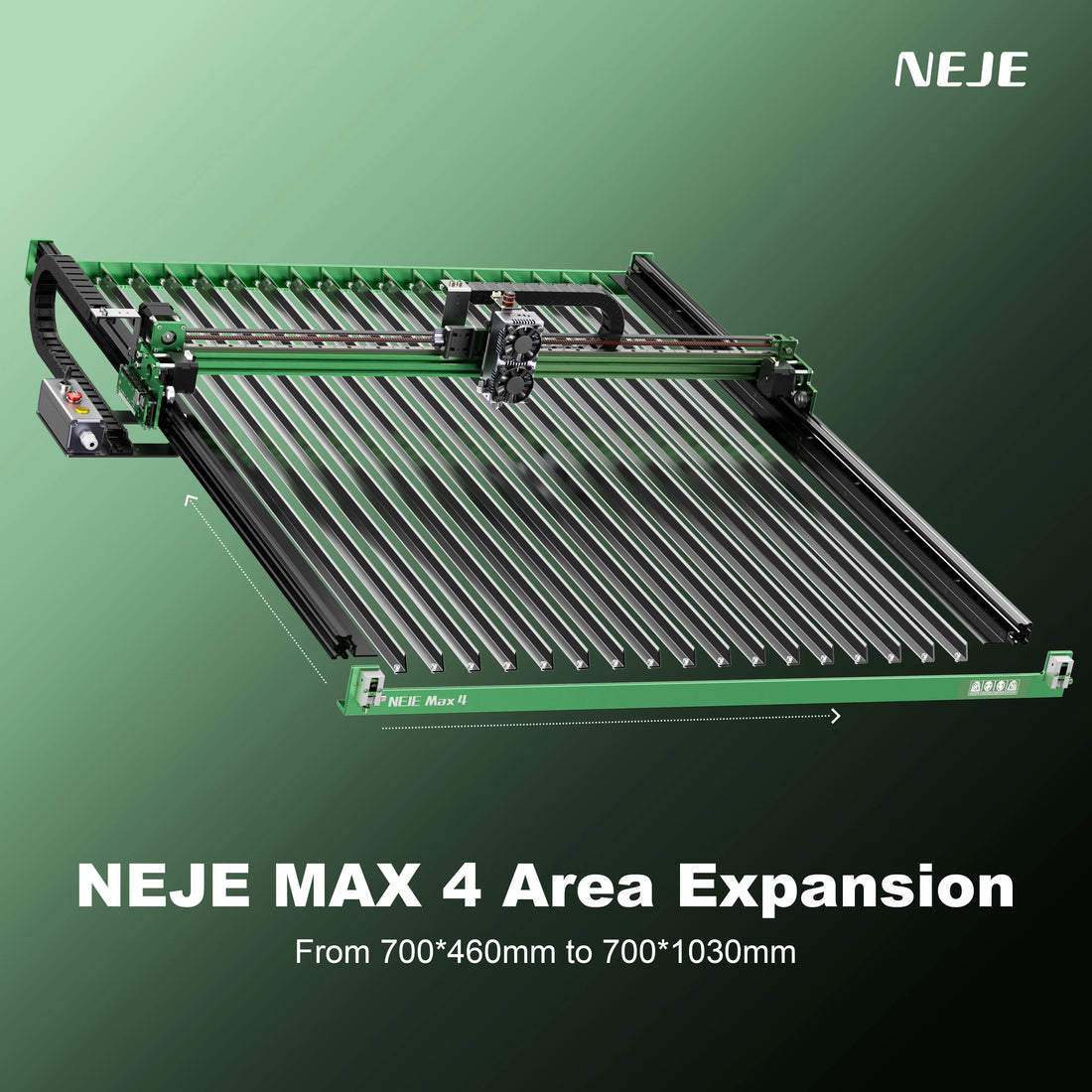

NEJE Max 4 V2 E80 Motorized Z-Axis Wood Laser Cutter is a powerful tool for creators, offering precision, speed, and versatility for large-scale projects. One of its standout features is the ability to expand the work area from the standard 700×460mm to an impressive 700×1030mm using an extension rod. This blog explores how to set up the extension rod and the key advantages it brings to your laser engraving and cutting projects.

Setting Up the 1030mm Extension Rod

Expanding the work area of your NEJE Max 4 V2 is straightforward, but it requires proper configuration to ensure optimal performance. Follow these steps to set up the 1030mm extension rod:

1. Assemble the Extension Rod

The NEJE Max 4 V2 comes with extension components designed to maintain stability and precision. Attach the 1030mm extension rod to the Y-axis, ensuring it is securely fastened to the CNC-machined frame. The rod integrates seamlessly with the machine’s groove-interlocked panels and CNC-corrected Y-axis guide rails for perfect alignment. In addition to using two honeycomb panels for cutting assistance, an additional L-shaped cutting platform for 1030mm is provided.

2. Adjust Firmware Parameters

• For NEJE Software Users: Open the NEJE software and navigate to the settings menu. Modify the firmware parameters to account for the extended work area. Update the Y-axis travel distance to reflect the new 1030mm length.
• For LightBurn and Lasergrbl Software Users: After adding the the new device, go to Device Settings and Device Configuration. Set the firmware parameters $130 and $131 to accommodate the extended Y-axis length (1030mm). This ensures the software recognizes the expanded work area for accurate operation.
•

3. Verify Stability

The NEJE Max 4 V2’s upgraded extended components feature reinforced stability structures. After installation, test the machine at low speed to confirm smooth motion across the extended area. The dual-slider rails and optimized gantry structure ensure ripple-free operation, even at 1000mm/s.

Benefits of Using the Extension Rod

1. Expanded Work Area for Larger Projects

The extension rod increases the work area to 700×1030mm, making it ideal for oversized projects like architectural models, lamp art, wall art, and large fabric or canvas designs. This expanded capacity allows creators to tackle ambitious projects without needing multiple setups or larger machines.

2. Maintained Precision and Stability

The NEJE Max 4 V2’s CNC-machined frame and Y-axis guide rails are designed for ultra-precise operation. Even with the extended work area, the machine maintains a 0.1mm repetition accuracy and supports high-speed motion (up to 1000mm/s with 100,000mm/s² acceleration). The reinforced stability structures ensure consistent performance across the entire work area.

3. Versatility for Diverse Applications

The larger work area supports a wide range of materials, including wood, plywood, leather, corrugated cardboard. This versatility makes the NEJE Max 4 V2 suitable for applications ranging from intricate engravings on uneven surfaces to high-speed cutting for industrial-grade projects.

4. Cost-Effective Upgrade

Instead of investing in a larger machine, the extension rod offers a cost-effective way to expand the capabilities of your NEJE Max 4 V2. The upgrade is easy to install and fully compatible with the machine’s existing control system, making it an accessible solution for hobbyists and professionals alike.

Conclusion

The 1030mm extension rod for the NEJE Max 4 V2 unlocks new possibilities for creators, offering a larger work area without compromising precision or stability. By following the simple setup process and leveraging the machine’s advanced features, you can take on ambitious projects with confidence.

For more information on the NEJE Max 4 V2 and its accessories, visit the NEJE Shop or check out the NEJE Blog and Wiki for detailed guides.
